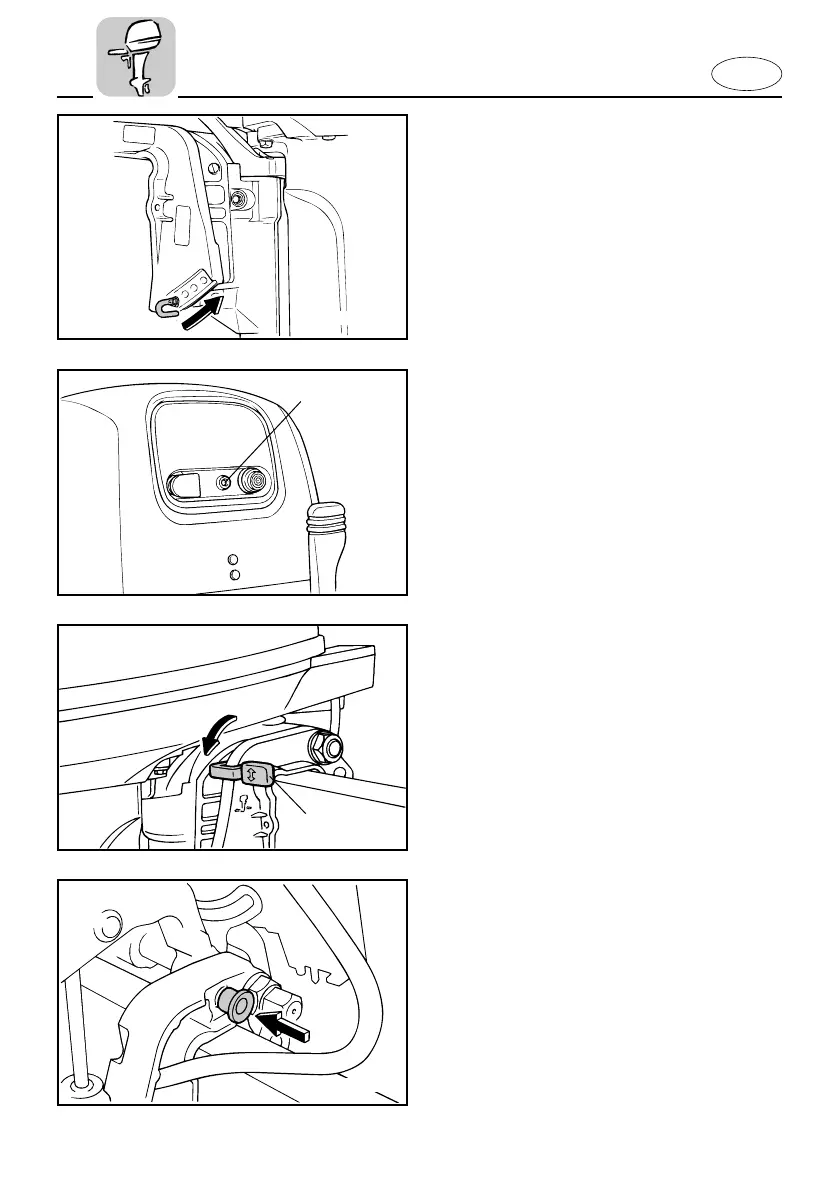

WARNING INDICATOR(S)
If the engine develops a condition moni-
tored by the warning system, an indicator
will come on.
Refer to the “WARNING SYSTEM” sec-
tion for details.
1 Warning indicator(s)
EMU01297
TRIM ANGLE ADJUSTING ROD
The position of the trim angle adjusting
rod determines the minimum trim angle
of the outboard motor in relation to the
transom.
223013*
q
EMU00155
TILT SUPPORT KNOB
To keep the outboard motor in the tilted-
up position, push the tilt support knob
under the swivel bracket.
EMU00153
TILT LOCK MECHANISM
(for Manual tilt model)
The tilt-lock mechanism is used to pre-
vent reverse thrust from the propeller lift-
ing the outboard motor when reversing.
To lock it, set the tilt-lock lever in the Lock
position.
To release it, place the tilt-lock lever in the
Tilt position.
1 Tilt-lock lever
