Yamaha F20BEH - Page 176

6-10
Multi-sensor (OP)
FUEL TANK 2
FUEL TANK 1
(+)
(GND)
SPEEDFUELTACH(P)TACH(S)
PS
Coolant press. sensor (OP)
Speed sensor
ECM
Trim sender
Coolant press. sensor (OP)
Speed sensor
ECM
Trim sender
Fuse (10A)
NMEA
0183
GPS
ResistorCap
Resistor
Cap
Cap
Cap
Multi-hub
Multi-hubMulti-hub

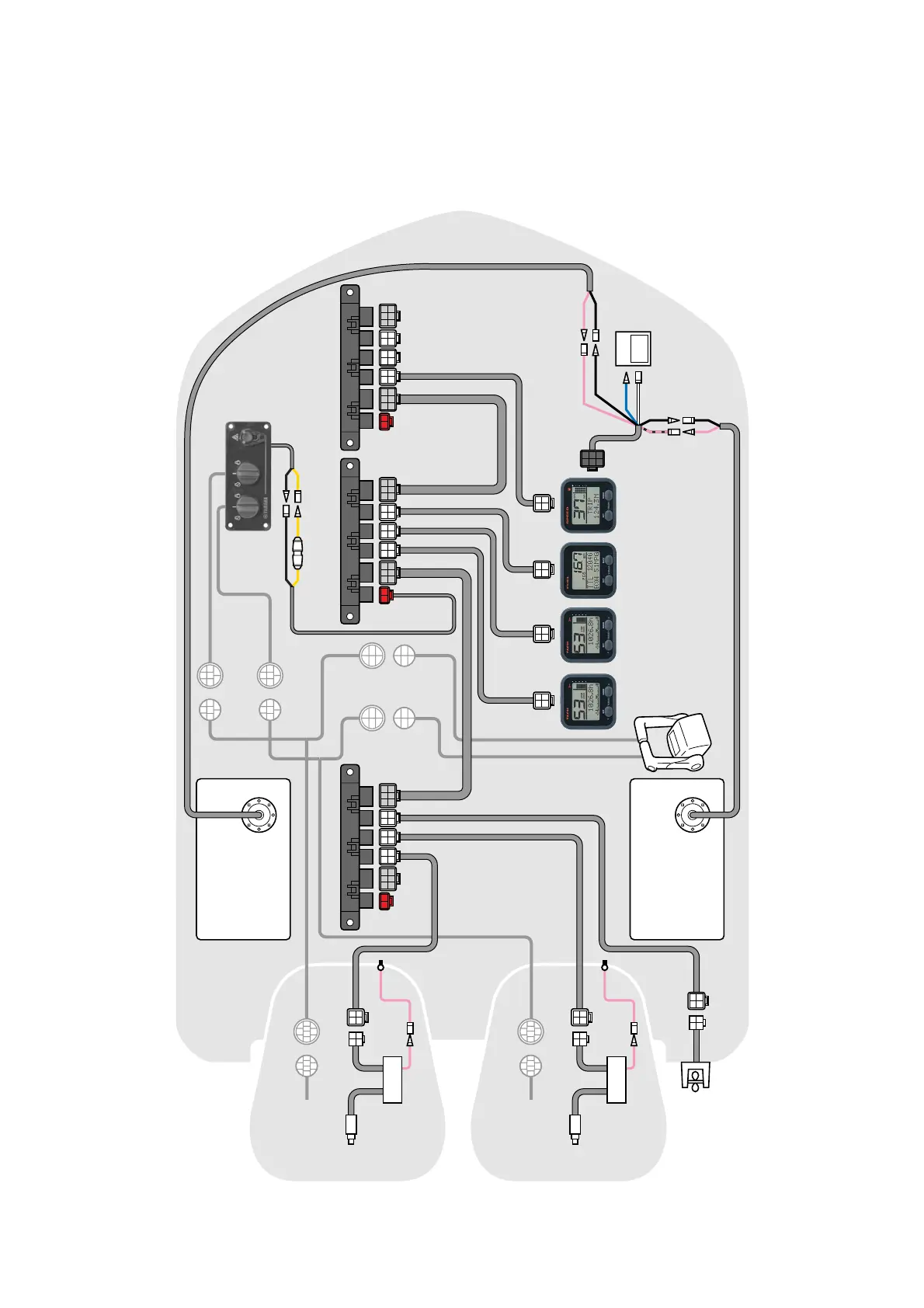

WIRING DIAGRAMS
FUEL INJECTED F50-F250 [Mechanical RC] & HPDI ENGINES
TWIN ENGINE
