Yamaha F20BEH - Page 177

6-11
P
Multi-sensor (OP)
Speed sensor
FUEL TANK 2
FUEL TANK 1
FUEL TACH(C)TACH(S) TACH(P) SPEED
Coolant press. sensor (OP)
ECM
Trim sender
Coolant press. sensor (OP)
ECM
Trim sender
C
S
Coolant press. sensor (OP)
ECM
Trim sender
Fuse (10A)
(+)
(GND)
NMEA
0183
GPS
Multi-hubMulti-hubMulti-hub
Multi-hub
Resistor
Cap
Cap
CapCap
Resistor
Cap
Cap

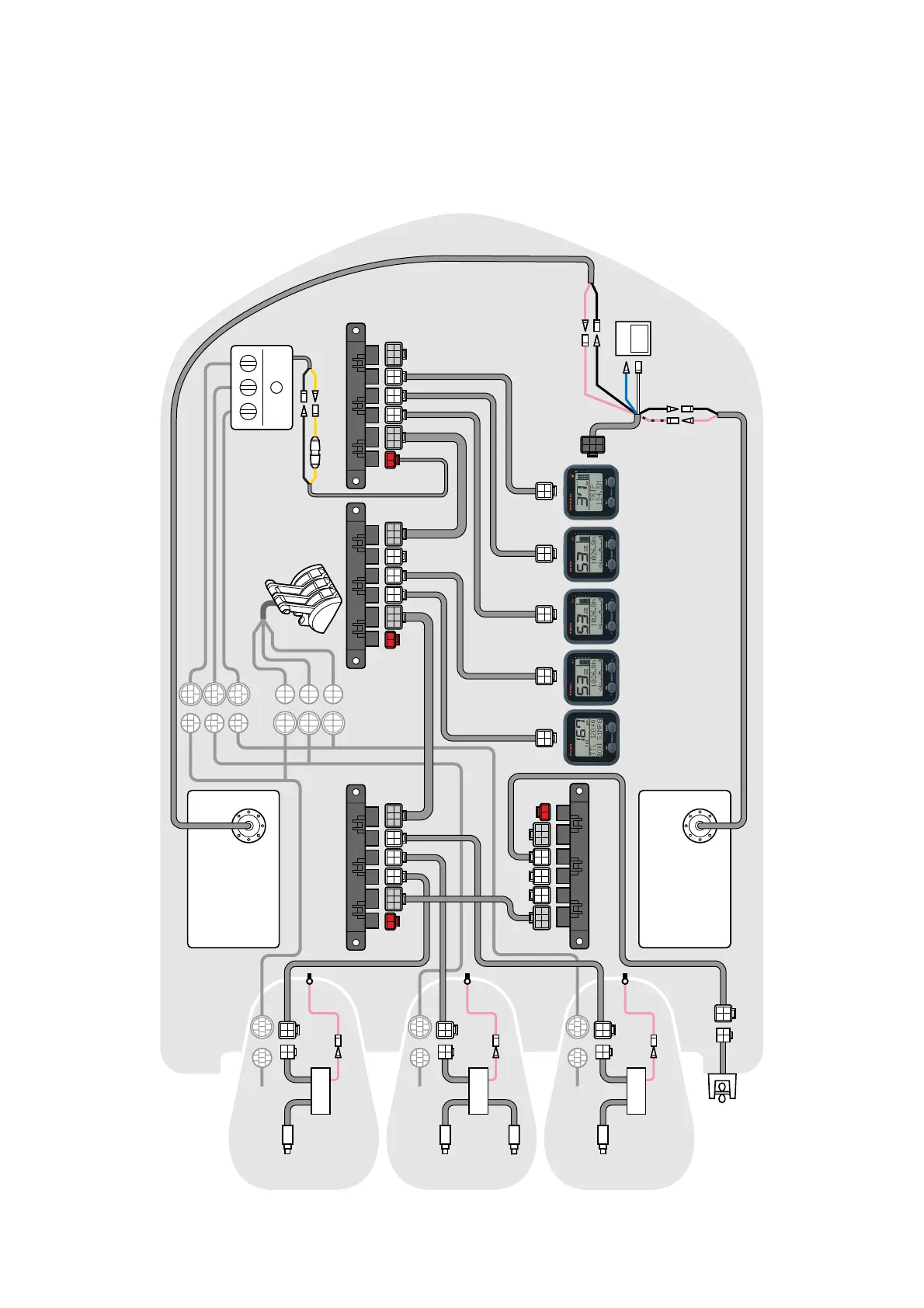

WIRING DIAGRAMS
FUEL INJECTED F50-F250 [Mechanical RC] & HPDI ENGINES
TRIPLE ENGINE
