6-13
Speedometer
Tachometer
NMEA0183
compatible
GPS
Not used
(GND)
(+)
Concealed RC
6X7-48206-00
IG switch panel
64D-82570-20
New main-harness (16P) 7m: 6X6-8258A-10 8m: 6X6-8258A-20 10m: 6X6-8258A-30 12m: 6X6-8258A-40
Multi-hub
Speed sensor
(OP)
Multi-sensor
(Depth, Temp, Speed)
ECM
Shift actuator
Electronic throttle body
Fuel tank
ECM
Single hub
w/ resistor
Fuse (10A)

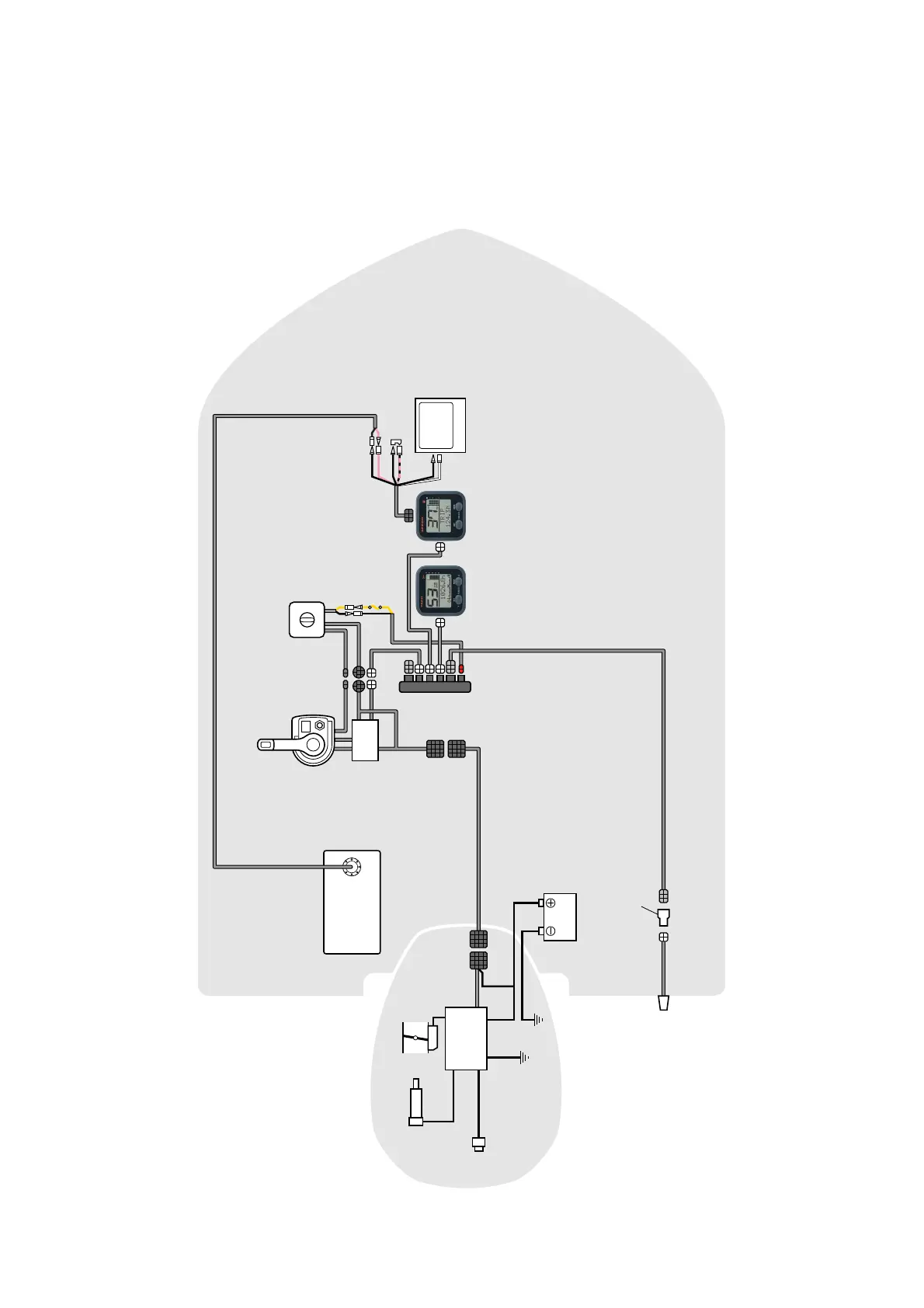

WIRING DIAGRAMS
F350/F300/F250 [Digital Electronic Control]
SINGLE ENGINE W/ CONCEALED RC
