6-14
Fuel tank 2
Fuel tank 1
ECM
Shift actuator
Electronic throttle body
Tachometer
Multi-hub
Binnacle twin RC
6X6-48207-00/10
Twin SW panel
6Y8-82570-02
Speedometer
NMEA0183
compatible
GPS
Speed sensor
(OP)
Fuel mgt
meter
Tachometer
Multi-hub
Fuse (10A)
Shift actuator
Electronic throttle body
PS
New main-harness (16P) 7m: 6X6-8258A-10 8m: 6X6-8258A-20 10m: 6X6-8258A-30 12m: 6X6-8258A-40
(GND)
(+)
Multi-hub
Multi-sensor (Depth, Temp, Speed)
ECM
Multi-hub

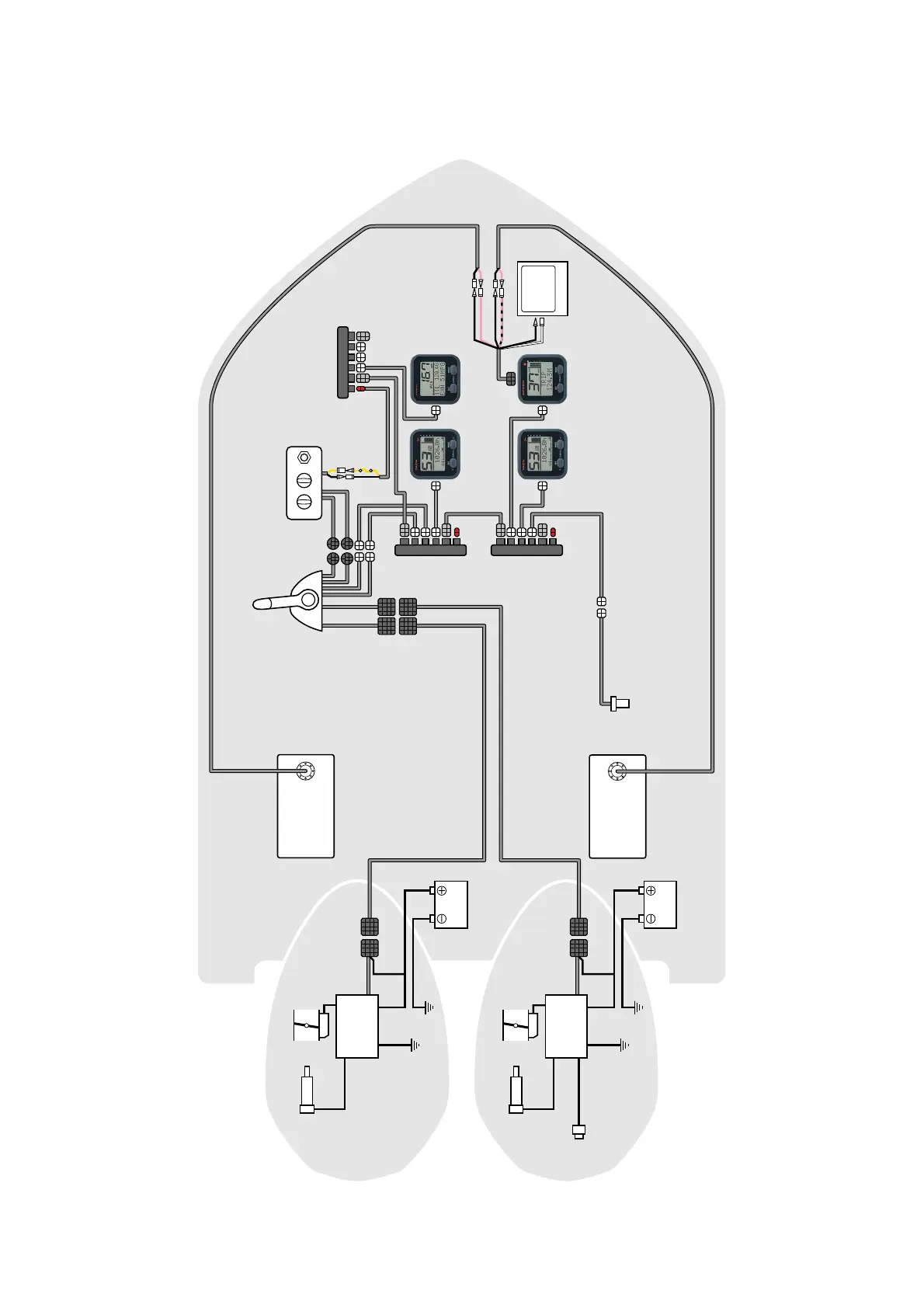

WIRING DIAGRAMS
F350/F300/F250 [Digital Electronic Control]
TWIN ENGINE
