1-36
OUTBOARD MOTOR DIMENSIONS

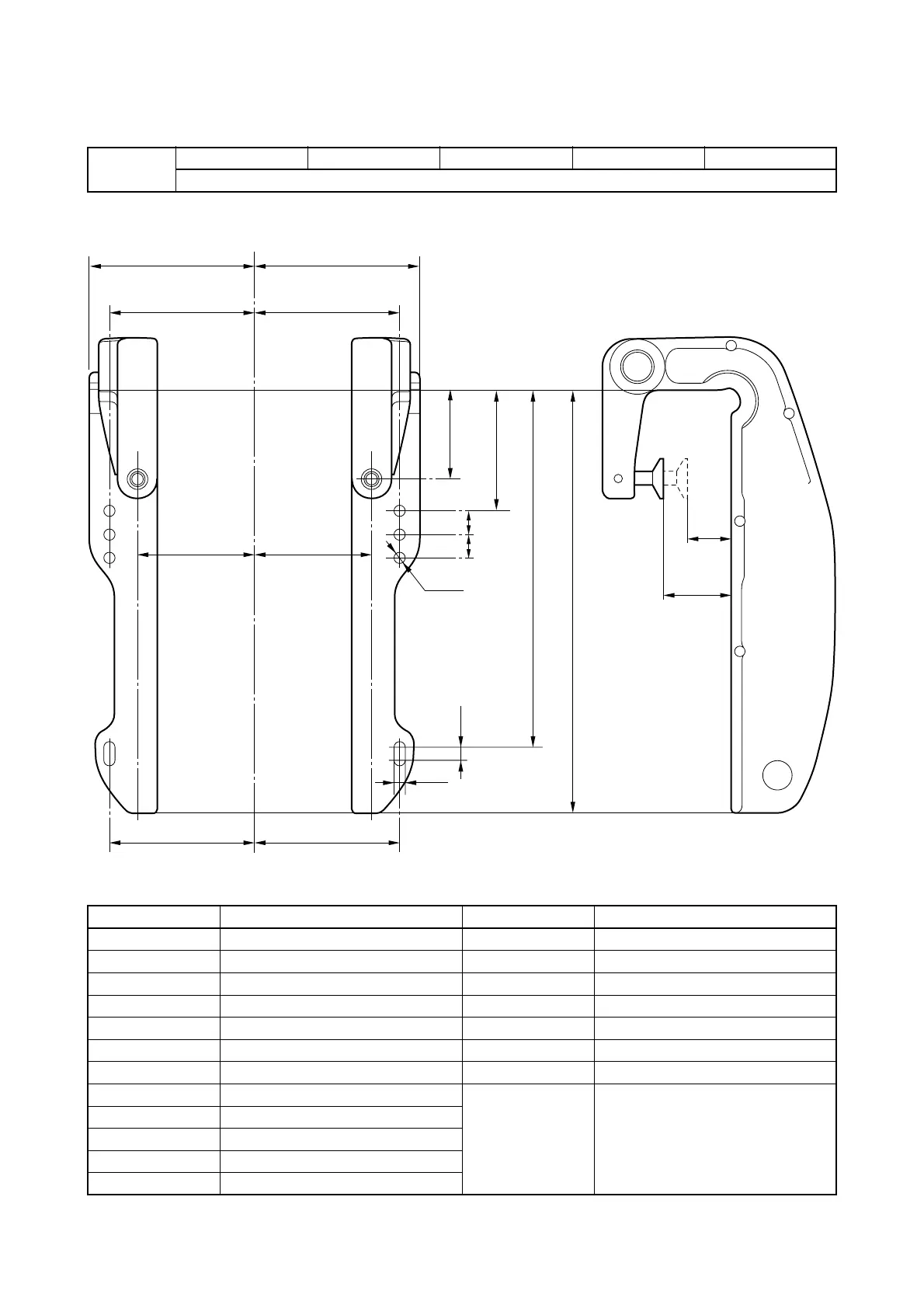

CLAMP BRACKET DIMENSIONS
Model
FT8D (T8[D]) F15C (F15[C]) F20B (F20)
FT9.9G (T9.9[G])
Power tilt
Symbol mm (in.) Symbol mm (in.)
B1 95.3 (3.8) C1 38 (1.5)
B2 275.5 (10.8) C2 67 (2.6)
B3 95.3 (3.8) C3 —
B4 94.5 (3.7) D1 8.3 (0.3)
B5 111 (4.4) D2 10 (0.4)
B6 325.5 (12.8) D3 —
B7 — D4 —
B8 —
B9 18 (0.7)
B10 —
B11 73.5 (2.9)
B12 69.5 (2.7)
C1
C2
B11
B1
D2
D1
D1
B9
B9
B3
B12
B4
B2
B6
B5
B11
B1
B3
B5
C/L
