1-37
OUTBOARD MOTOR DIMENSIONS

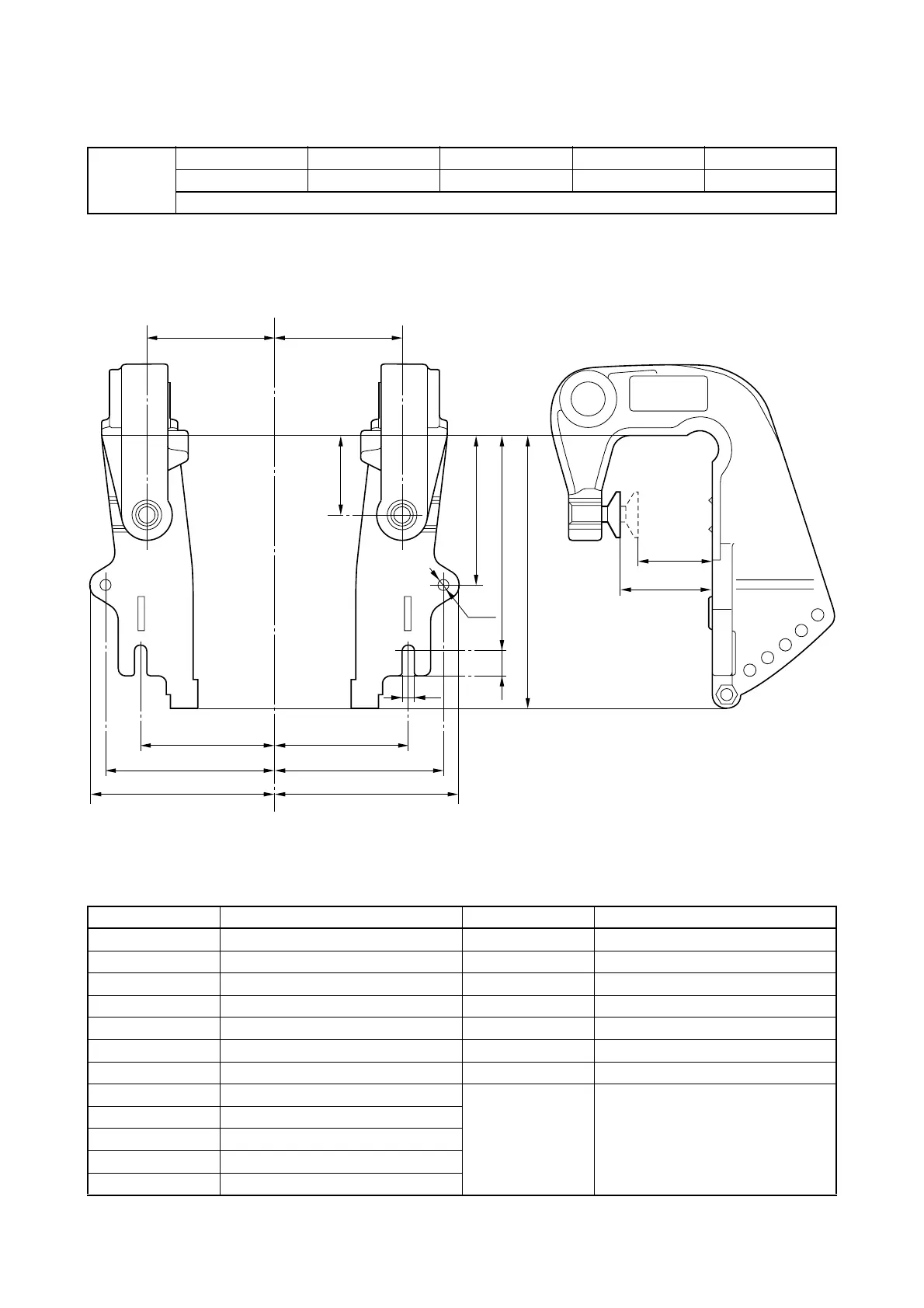

CLAMP BRACKET DIMENSIONS
Model
25B 25X 30H E25B E30H
EK25B EK25C
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 89 (3.5) C1 35 (1.4)
B2 140 (5.5) C2 65 (2.6)
B3 112.5 (4.4) C3 —
B4 96.5 (3.8) D1 8.5 (0.33)
B5 122.5 (4.8) D2 15 (0.59)
B6 176 (6.9) D3 —
B7 — D4 —
B8 —
B9 —
B10 —
B11 85 (3.3)
B12 51 (2.0)
B11
C/L
B3
B1
B5
C2
B2
B12
B4
D2
B6
C1
D1
B1
1
B3
B1
B5
D1
