OUTBOARD MOTOR DIMENSIONS

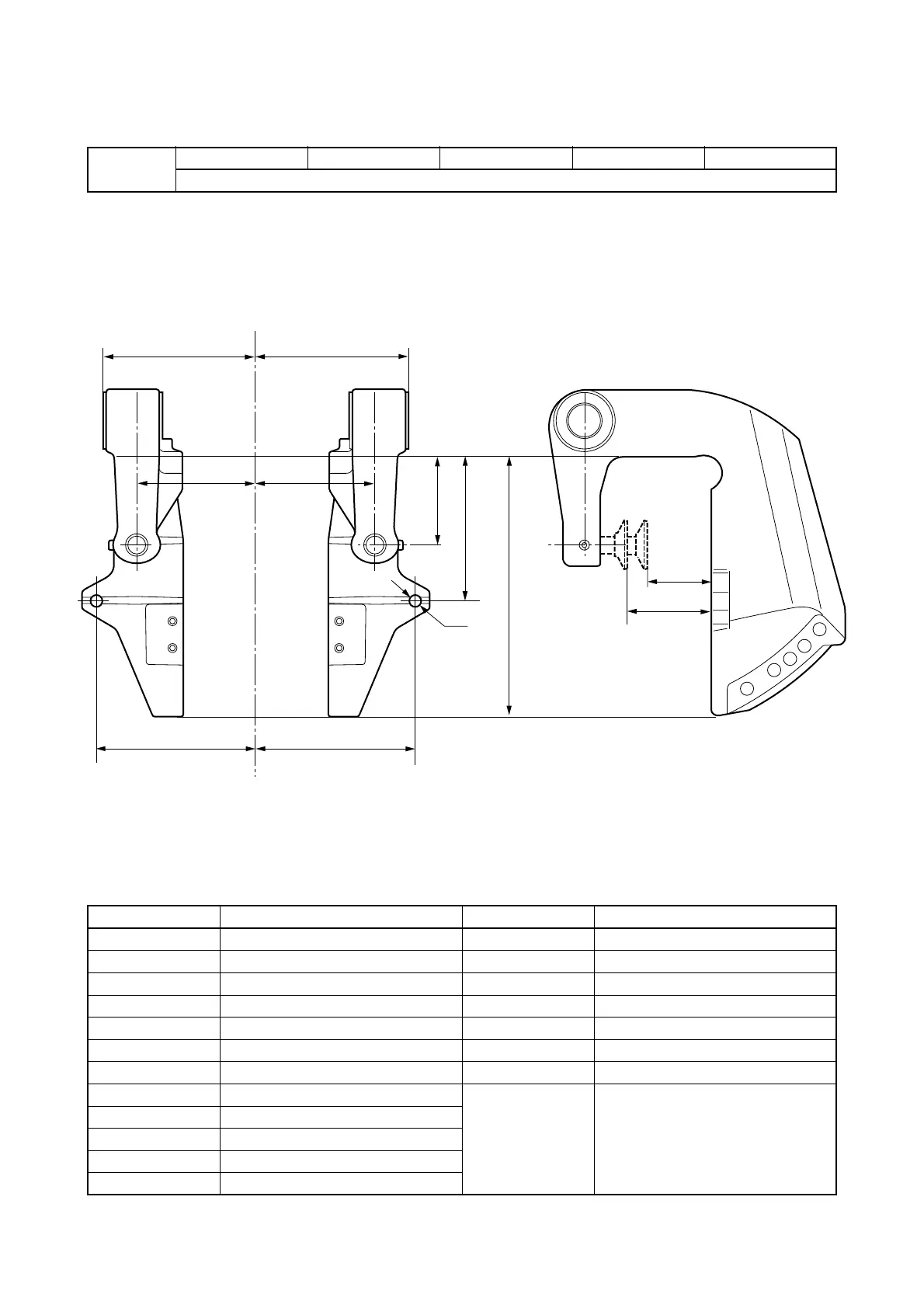

CLAMP BRACKET DIMENSIONS
Model
20D (20) 25N (25)
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 — C1 25 (1.0)
B2 97.5 (3.8) C2 65 (2.6)
B3 114.5 (4.5) C3 —
B4 — D1 8.3 (0.32)
B5 122.5 (4.8) D2 —
B6 175 (6.9) D3 —
B7 — D4 —
B8 —
B9 —
B10 —
B11 87.5 (3.4)
B12 84 (3.3)
B5
C/L
B5
B11
B11
B2
B3
B3
B12
C1
C2
D1
B6
