1-48
OUTBOARD MOTOR DIMENSIONS

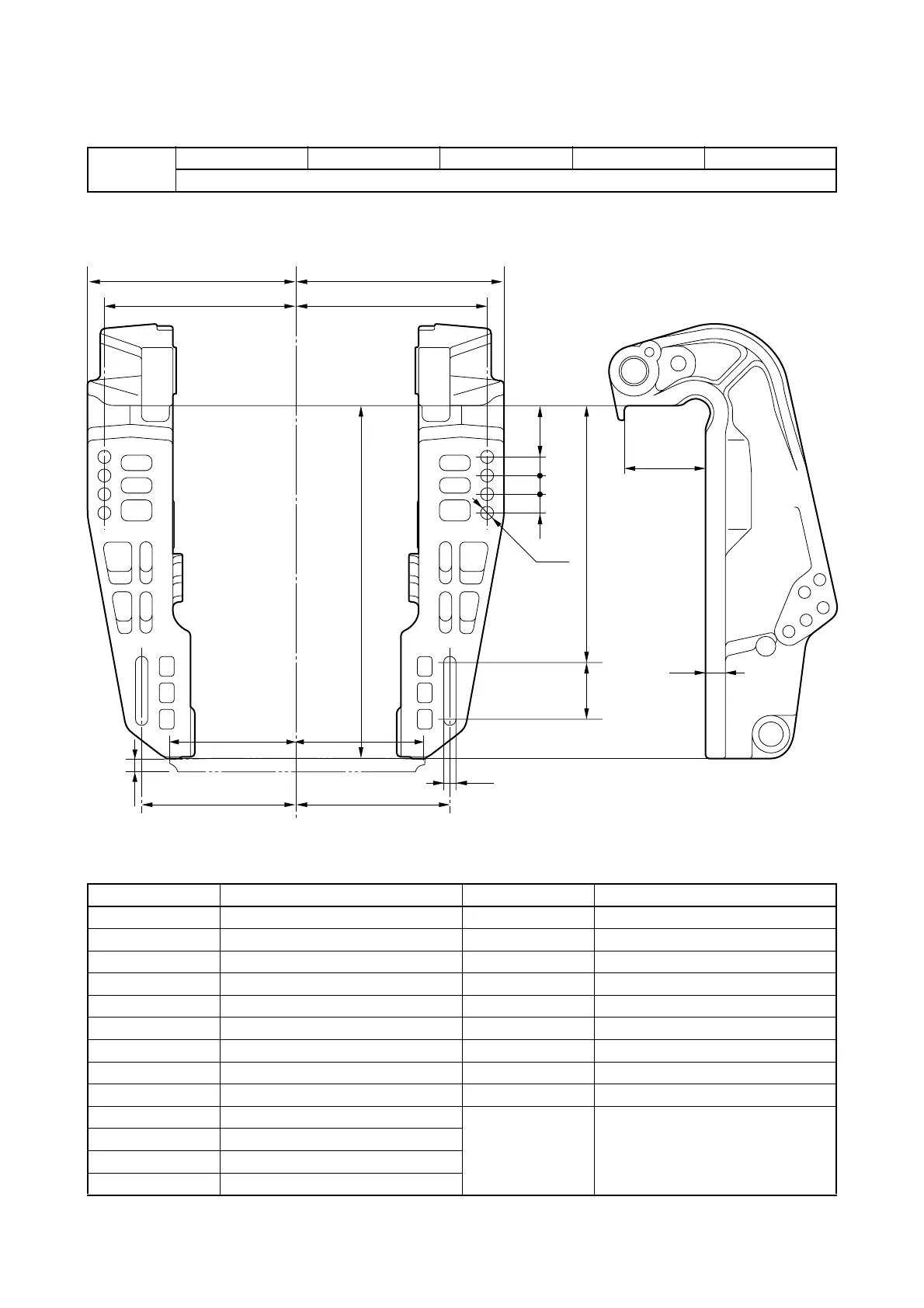

CLAMP BRACKET DIMENSIONS
Model
F75B (F75) F80B F90B (F90) F100D
PTT
Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) C1 —
B2 254 (10.0) C2 —
B3 163.5 (6.4) C3 80 (3.1)
B4 50.8 (2.0) D1 13 (0.51)
B5 180 (7.1) D2 55.5 (2.2)
B6 368 (14.5) D3 —
B7 — D4 —
B8 — AN1 19 (0.75)
B9 18.5 (0.73) AN2 101.5 (4.0)
B10 —
B11 —
B12 —
B13 20 (0.79)
B6
B3
B1
D1
B5
C/L
B3
B1
B5
C3
B13
B2
D2
D1
B4
B9
B9
B9
AN1
AN2 AN2
To Next Page
