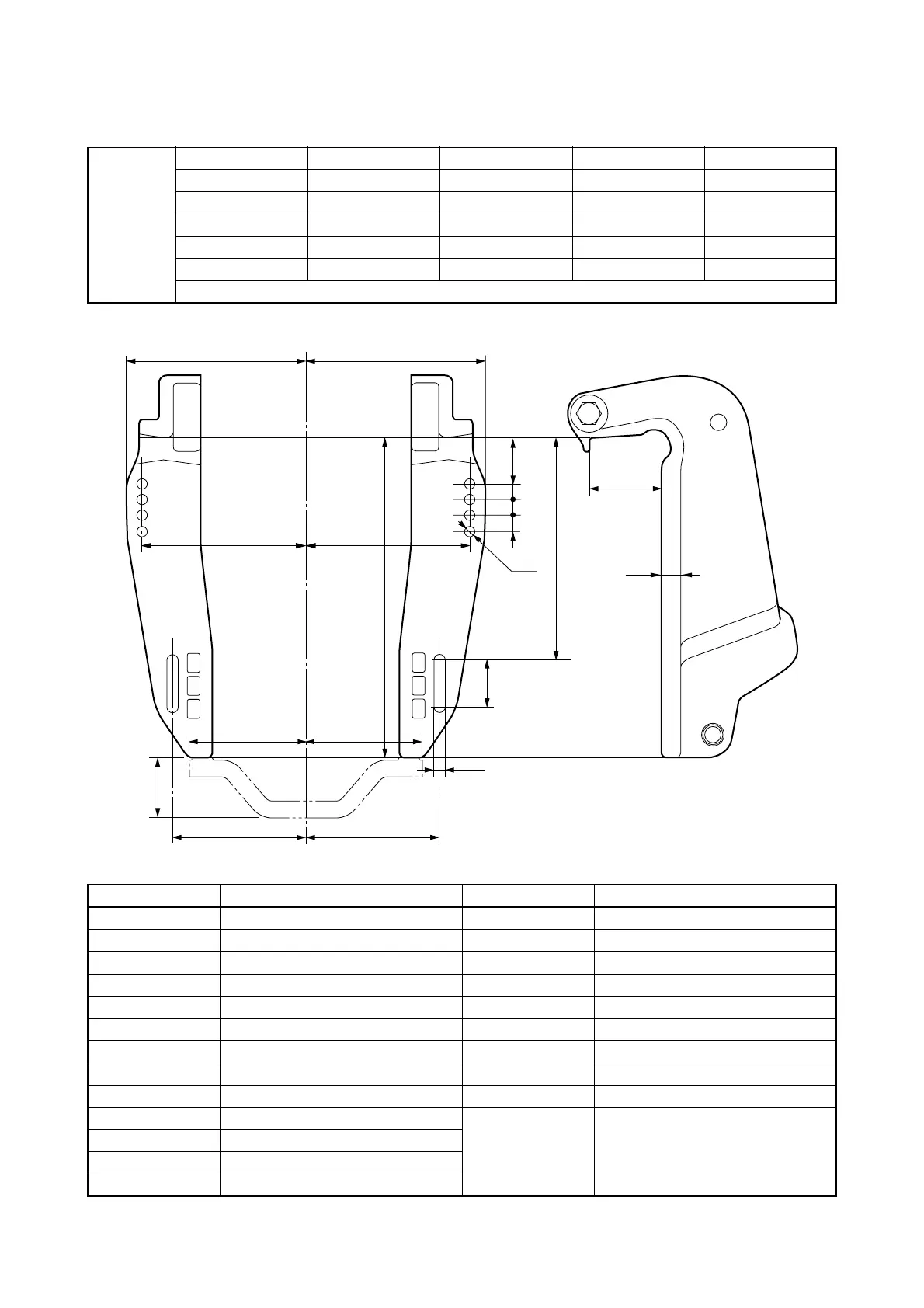

OUTBOARD MOTOR DIMENSIONS
CLAMP BRACKET DIMENSIONS
Model
E115A 115B 115C (115) 130B 140B
150A 200A 150F (150) 150G (V150) 175D
200G 200F 225D Z150P (Z150) Z150Q (VZ150)
Z175G (Z175) Z175H (VZ175) Z200N (Z200) Z200P Z200R (VZ200R)
Z225H (VZ225H) Z250F (VZ250F) Z300B (VZ300B)
F75C F95A
F100B F115A (F115) F150A (F150) F150B F225C (F225L)
PTT & Hydro tilt,
* L/H rotation model has the same dimensions as R/H model.
Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) C1 —
B2 254 (10.0) C2 —
B3 163.5 (6.4) C3 82 (3.2)
B4 50.8 (2.0) D1 13 (0.51)
B5 180 (7.1) D2 55.5 (2.2)
B6 367 (14.4) D3 —
B7 — D4 —
B8 — AN1 52 (2.0)
B9 18.5 (0.73) AN2 102 (4.0)
B10 —
B11 —
B12 —
B13 24 (0.94)
B13
B5
C/L
B3B3
B6
B1
B2
D1
C3
D1
D2
B4
B9B9
B9
B5
B1
AN1
AN2 AN2
