1-50
OUTBOARD MOTOR DIMENSIONS

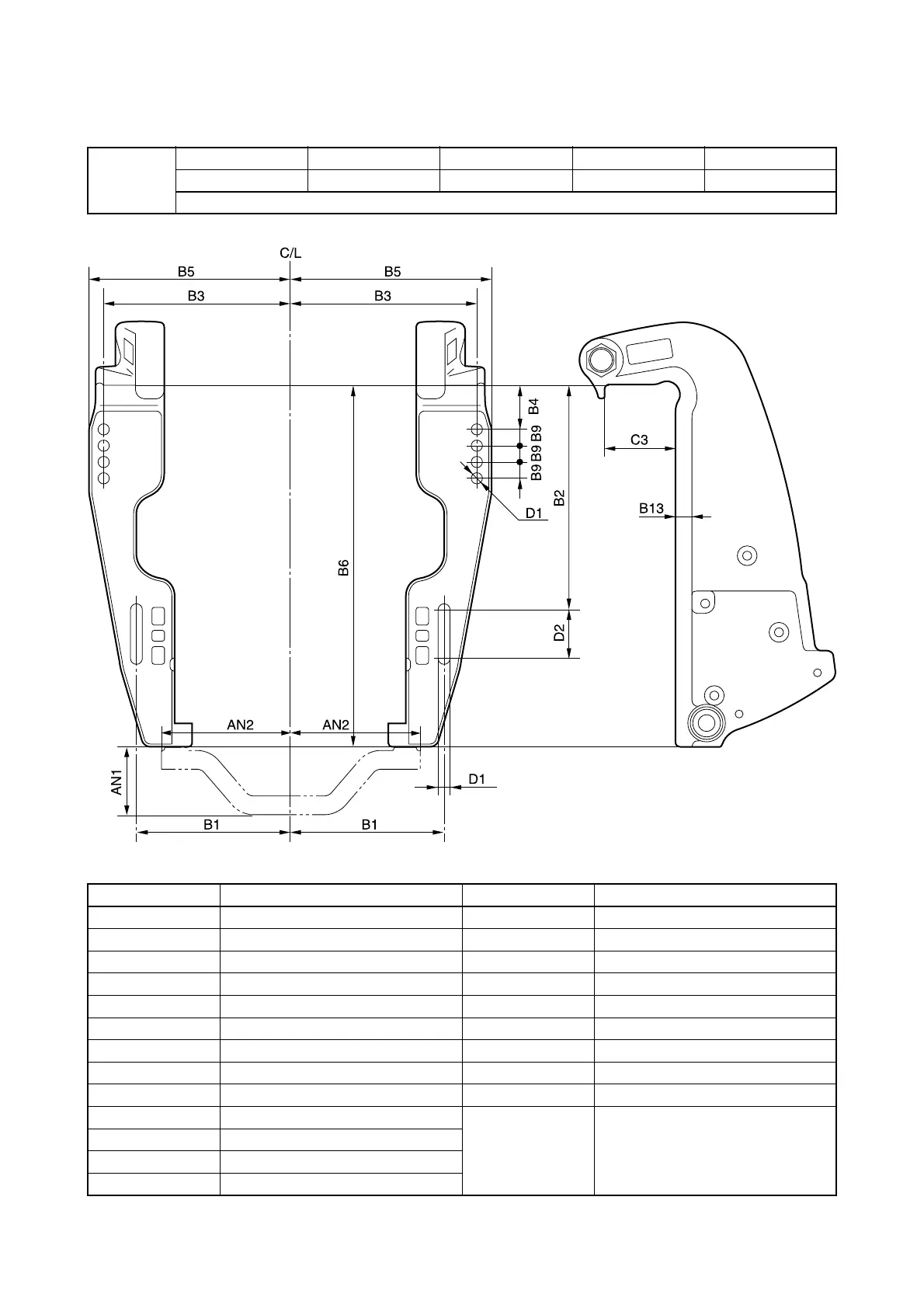

CLAMP BRACKET DIMENSIONS
Model
250G F200A (F200) F225A (F225) F200B F200C
F225B F250A (F250) F250B (F250[B])
PTT,
* L/H rotation model has the same dimensions as R/H model.
Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) C1 —
B2 254 (10.0) C2 —
B3 163.5 (6.4) C3 79 (3.1)
B4 50.8 (2.0) D1 13 (0.51)
B5 180 (7.1) D2 55.5 (2.2)
B6 411 (16.2) D3 —
B7 — D4 —
B8 — AN1 52 (2.0)
B9 18.5 (0.73) AN2 102 (4.0)
B10 —
B11 —
B12 —
B13 20 (0.79)
