1-51
OUTBOARD MOTOR DIMENSIONS

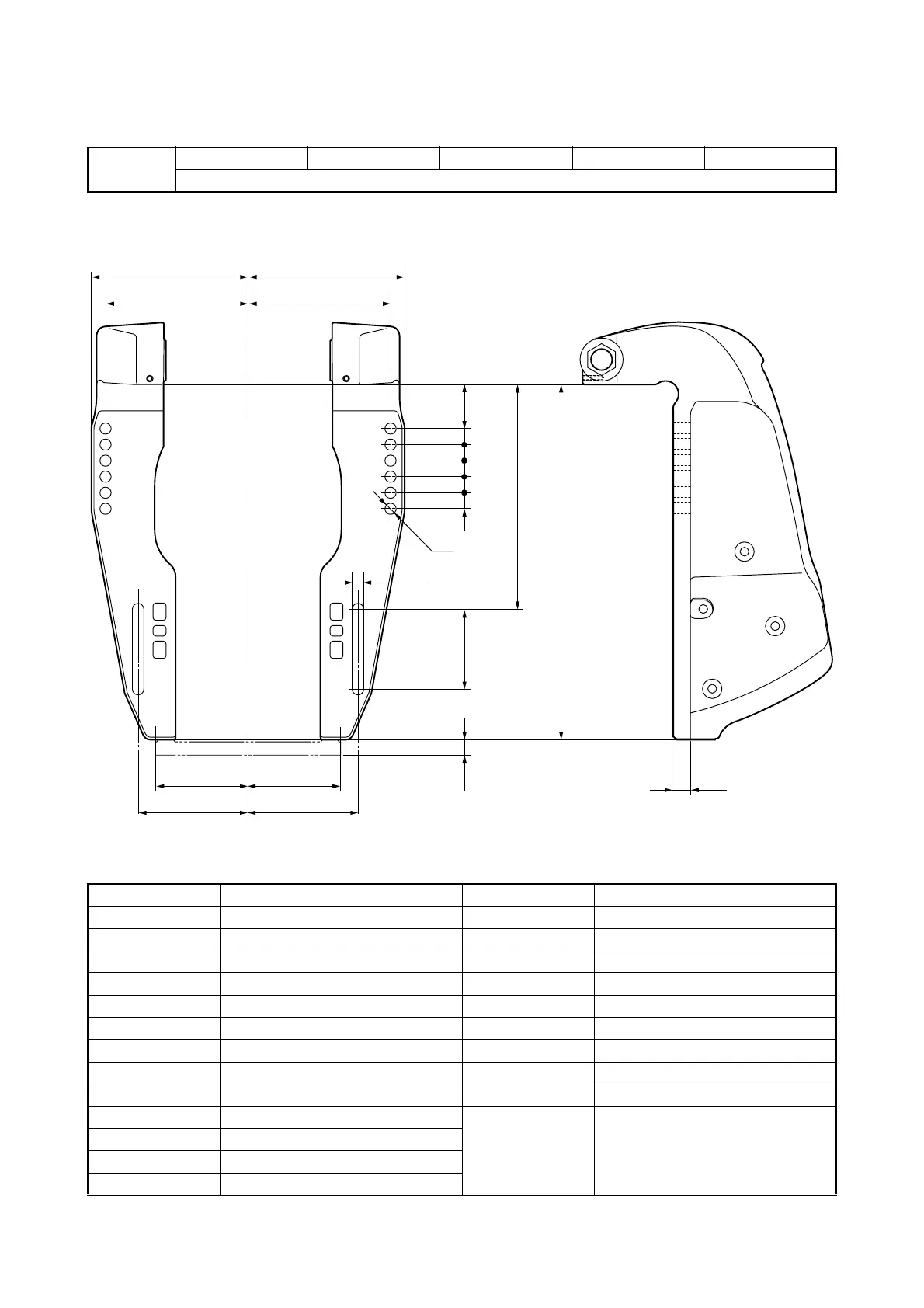

CLAMP BRACKET DIMENSIONS
Model
F300A (F300) F350A (F350)
PTT,
* L/H rotation model has the same dimensions as R/H model.
Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) C1 —
B2 254 (10.0) C2 —
B3 163.5 (6.4) C3 —
B4 50.8 (2.0) D1 13 (0.51)
B5 180 (7.1) D2 92.6 (3.6)
B6 406 (16.0) D3 —
B7 — D4 —
B8 — AN1 19 (0.75)
B9 18.5 (0.73) AN2 102 (4.0)
B10 —
B11 —
B12 —
B13 21 (0.83)
B5
B3
B5
B3
B13
B2
B4
D1
B1
B1
C/L
B9
AN2
AN2
D2
AN1
B6
D1
B9 B9 B9B9
