Yamaha F25C - Remote Control System Components

E
2-6
EMU00098*
Remote Control Lever
Moving the lever forward from the
Neutral position engages Forward gear.
Pulling the lever back from Neutral
engages Reverse. The engine will contin-
ue to run at idle until the lever is moved
about 35° (a detent can be felt). Moving
the lever further opens the throttle, and
the engine will begin to accelerate.
1 Neutral
2 Forward
3 Reverse
4 Shift
5 Fully closed
6 Throttle
7 Fully open
EMU00096*

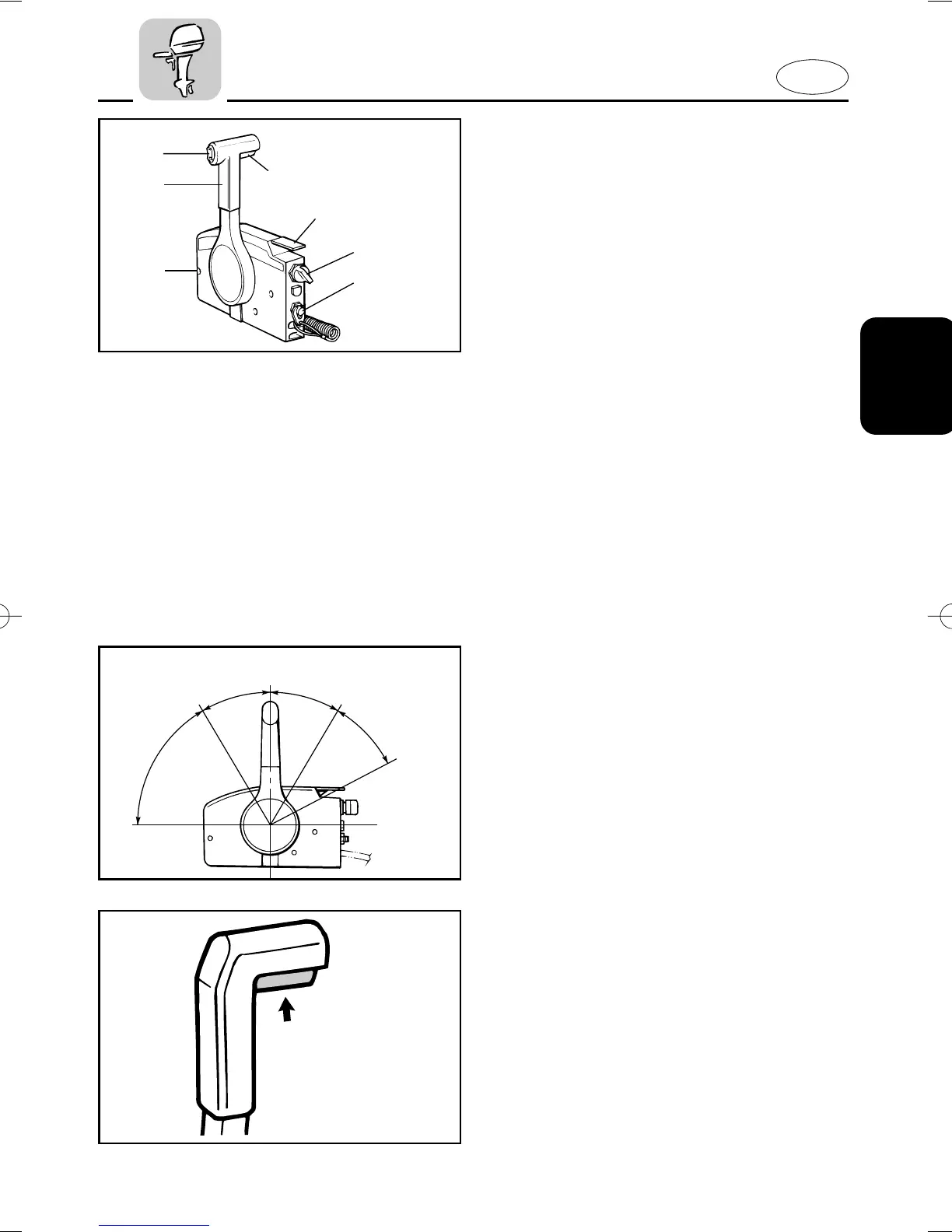

REMOTE CONTROL
Both the shifter and the throttle are actu-
ated by the remote control lever.
Additionally, the remote control also has
the electrical switches.
1 Remote control lever
2 Neutral interlock trigger
3 Neutral throttle lever
4 Main switch
5 Engine stop lanyard switch
6 Power trim and tilt switch (if equipped)
7 Throttle friction adjusting screw
000200
w
q
e
r
t
y
u
R
N
F
q
w
e
r
t
y
u
u
t
r
y
701031
EMU00099
Neutral Interlock Trigger
To shift out of Neutral, the neutral inter-
lock trigger of the remote control lever
must first be pulled up.
701036
