12
Basic components
EMU25795

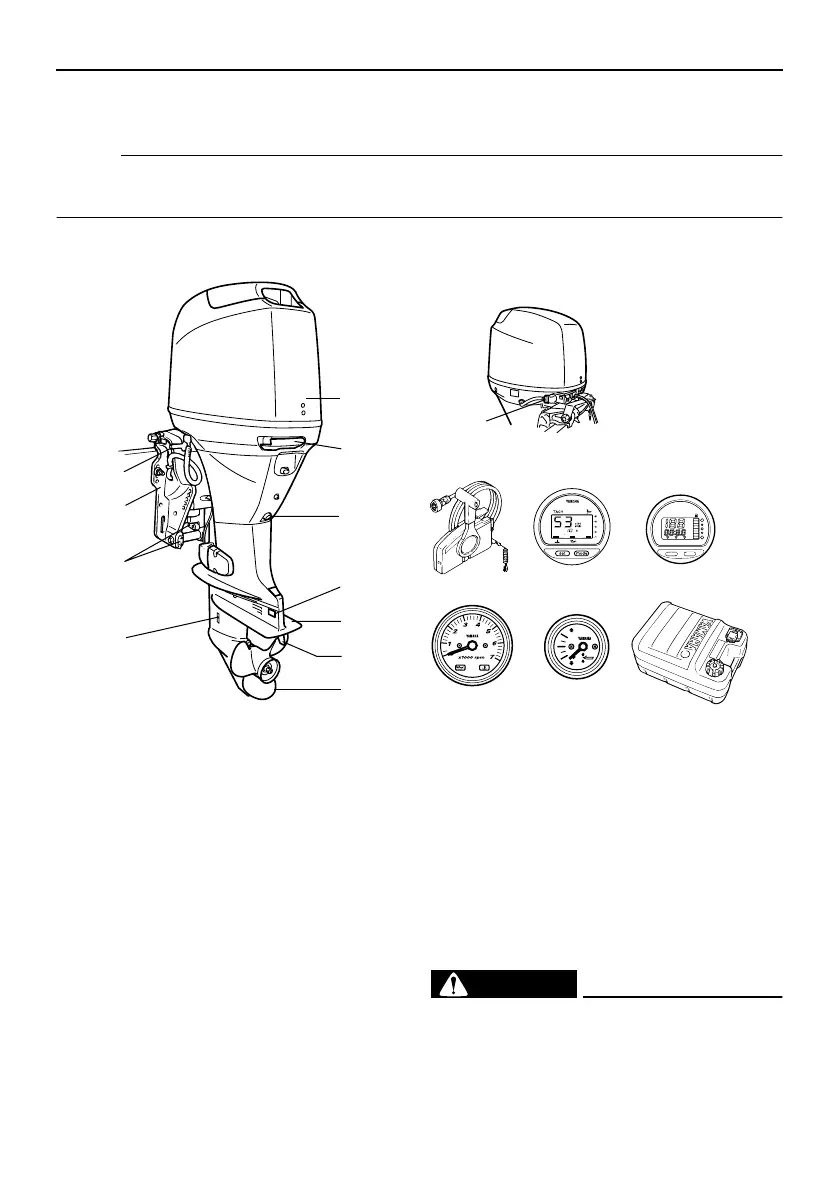

Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els.
F50D, T50D, F60D, T60D
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
1
2
3
TRIP TIME BATT
Km/h
knot
mph
km
mile
SPEED
YAMAHA
set
mode
8
10
5
6
4
9
7
11
13
16
14 15
17 18
ZMU05090
12
1. Top cowling
2. Top cowling lock lever
3. Drain screw
4. Anode
5. Anti-cavitation plate
6. Trim tab (anode)
7. Propeller*
8. Cooling water inlet
9. Anode(s)
10. Clamp bracket
11. Tilt support lever
12. Flushing device
13. Remote control box (side mount type)*
14. Digital tachometer*
15. Digital speedometer*
16. Tachometer*
17. Trim meter*
18. Fuel tank*
To Next Page
