Basic components
20
T9.9G
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
its dedicated fuel reservoir and must not
be used as a fuel storage container. Com-
mercial users should conform to relevant
licensing or approval authority regula-
tions.

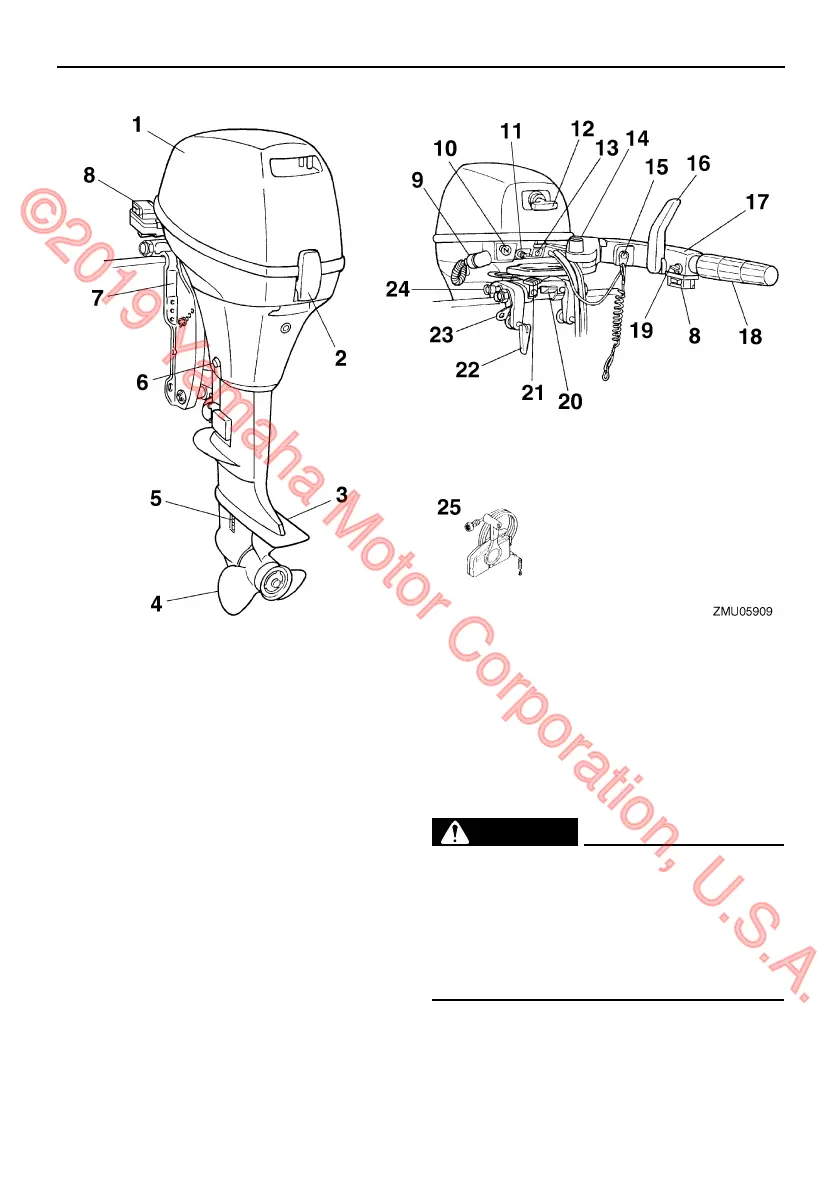

1. Top cowling
2. Top cowling lock lever
3. Anti-cavitation plate
4. Propeller
5. Cooling water inlet
6. Drain screw
7. Clamp bracket
8. Power tilt switch*
9. Flushing device
10.Choke knob
11.Fuel joint
12.Manual starter handle*
13.Warning indicator
14.Starter button*
15.Engine stop button/Engine shut-off switch*
16.Gear shift lever*
17.Tiller handle*
18.Throttle grip*
19.Throttle friction adjuster*
20.Tilt lock lever*
21.Steering friction adjuster*
22.Clamp screw
23.Rope attachment
24.Tilt support knob*
25.Remote control box (side mount type)*
