NOTE:
● Steering movement is blocked when the
adjuster lever is set to the “A” position.
●
Check the tiller handle for smooth move-
ment when the lever is turned to the star-
board side “B”.
●
Do not apply lubricants such as grease to
the friction areas of the steering friction ad-
juster.
EMU26261
Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
EMU30530
Tilt lock mechanism
The tilt lock mechanism is used to prevent the
outboard motor from lifting out of the water
when in reverse gear.
To lock it, set the tilt lock lever in the lock po-
sition. To release, push the tilt lock lever in the
release position.
EMU26321
Tilt support knob
To keep the outboard motor in the tilted up po-
sition, push the tilt support knob under the
swivel bracket.
CAUTION:
ECM00660
Do not use the tilt support lever or knob
when trailering the boat. The outboard mo-
tor could shake loose from the tilt support
and fall. If the motor cannot be trailered in

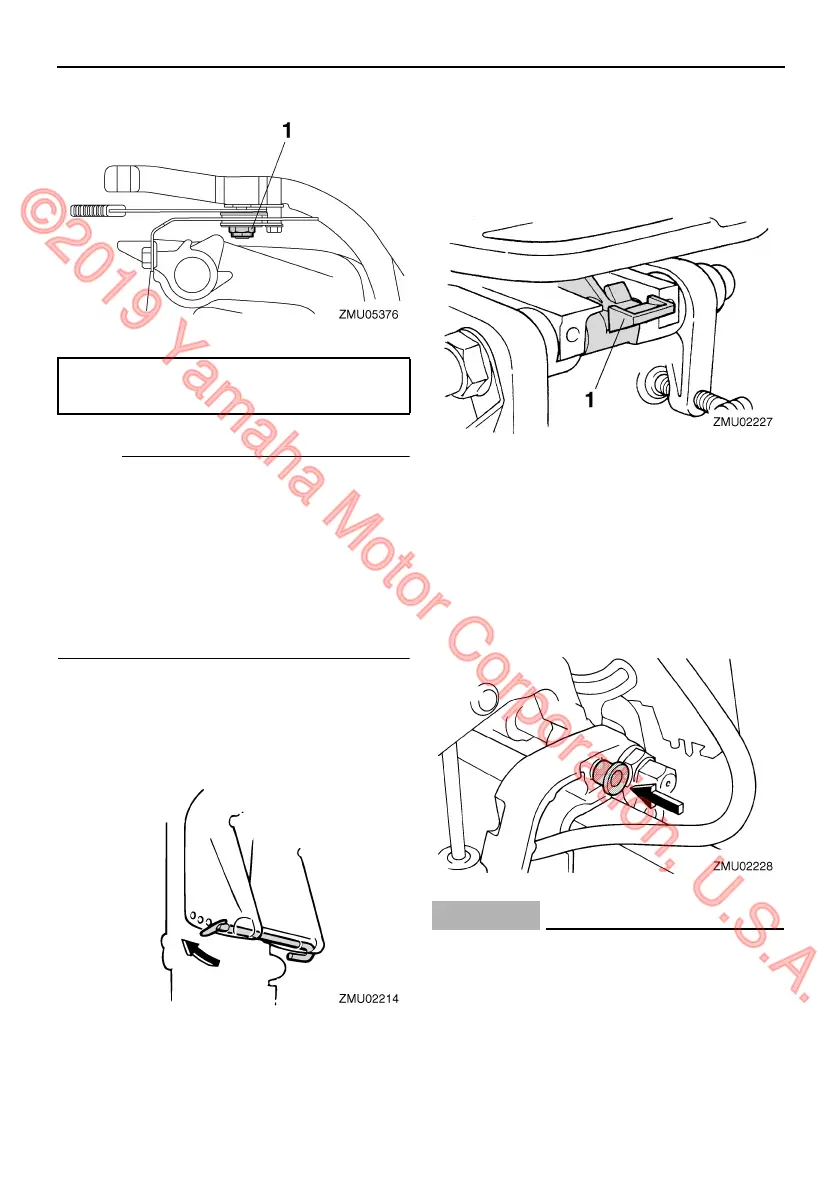

1. Nut
Nut tightening torque:
6.0 Nm (4.4 ft-lb) (0.61 kgf-m)
1. Tilt lock lever
