Basic components
28
the normal running position, use an addi-
tional support device to secure it in the tilt
position.
EMU26332

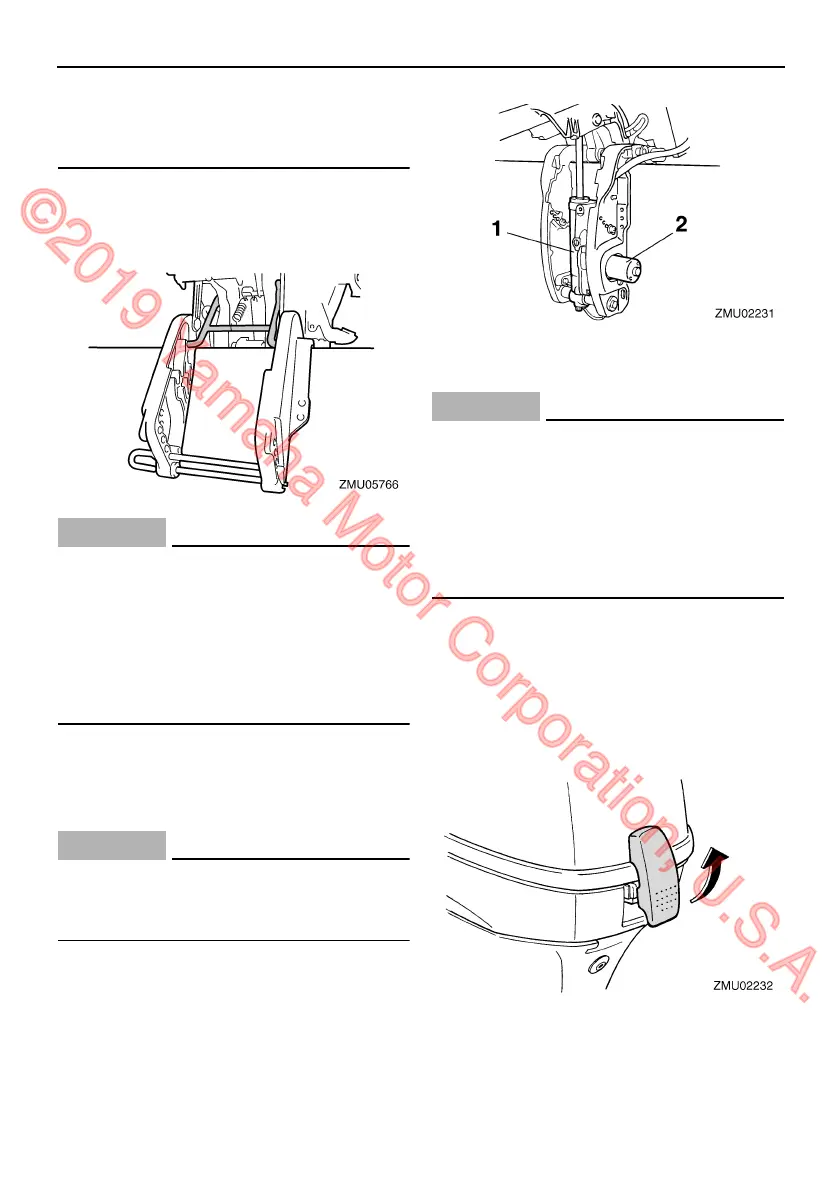

Tilt support bar
The tilt support bar keeps the outboard motor
in the tilted up position.
CAUTION:
ECM01660
Do not use the tilt support bar when traile-
ring the boat. The outboard motor could
shake loose from the tilt support and fall.
If the motor cannot be trailered in the nor-
mal running position, use an additional
support device to secure it in the tilt posi-
tion.
EMU26361
Power tilt unit
This unit tilts the outboard motor up and down
and is controlled with the power tilt switch.
CAUTION:
ECM00630
Do not step on or exert pressure on the
power tilt motor. The power tilt unit could
be damaged as a result.
CAUTION:
ECM00660
Do not use the tilt support lever or knob
when trailering the boat. The outboard mo-
tor could shake loose from the tilt support
and fall. If the motor cannot be trailered in
the normal running position, use an addi-
tional support device to secure it in the tilt
position.
EMU26382
Top cowling lock lever (pull up type)
To remove the engine top cowling, pull up the
lock lever(s) and lift off the cowling. When in-
stalling the cowling, check to be sure it fits
properly in the rubber seal. Then lock the
cowling by moving the lever(s) downward.
1. Power tilt unit
2. Power tilt motor
