EAU12900
Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
EAU12950
Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
EAUU1160
Fuel tank cap
To open the fuel tank cap
Insert the key into the main switch and,
while pushing the key in, turn it to “ ”.
The lock will be released and the fuel
tank cap can be removed.
To install the fuel tank cap
Push the fuel tank cap down into its po-
sition. A clicking sound can be heard
when the fuel tank cap is locked.
EWA10121
WARNING
_
Make sure that the fuel tank cap is
properly closed and locked before
riding. Leaking fuel is a fire hazard.
_

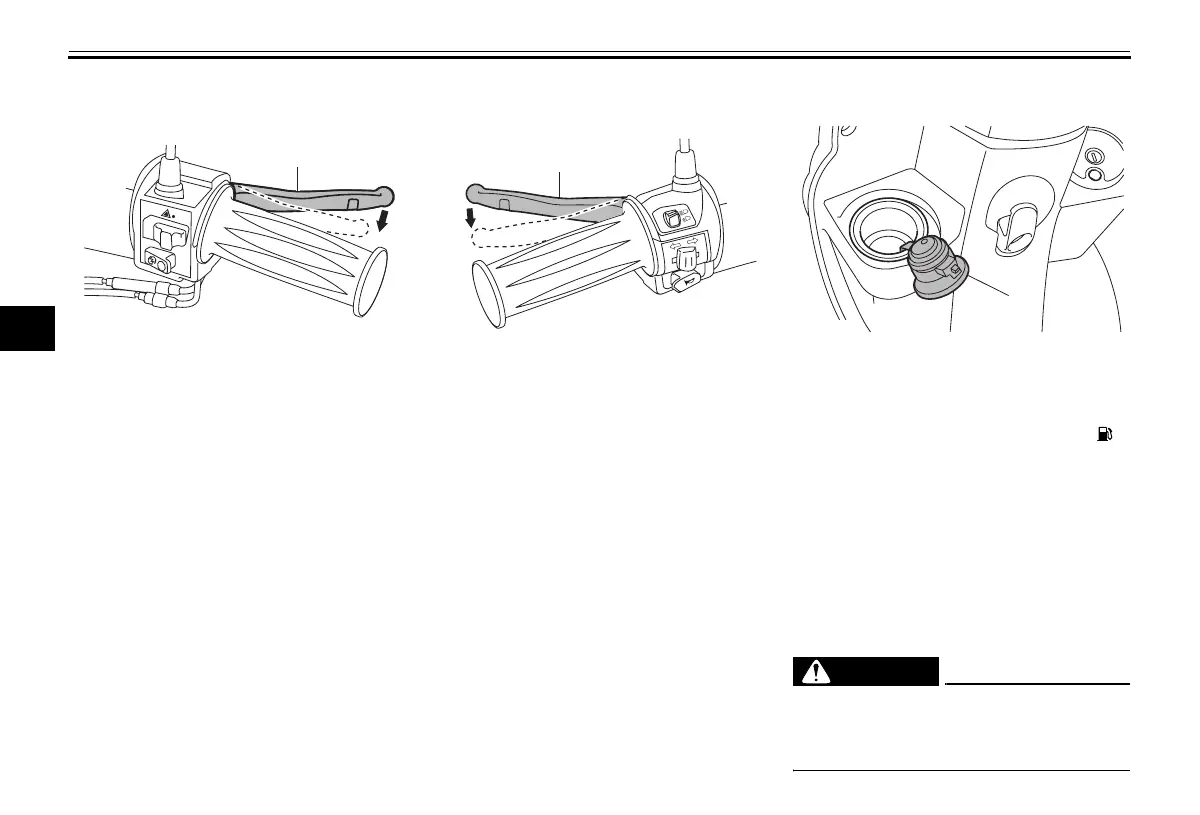

1. Front brake lever
1
ZAUU0686
1. Rear brake lever
1
ZAUU0687
1. Fuel tank cap
ZAUU0688
1
