INSTRUMENT AND CONTROL FUNCTIONS
4-8
4
EAUU1170
Seat
The seat can be opened by turning the
key as follows:
● From the “OFF” position, turn the
key counterclockwise to “SEAT”.
● From the “LOCK” position, turn the
key counterclockwise to “SEAT”.
● From the “ON” position, turn the
key clockwise to “SEAT”.
To open the seat
1. Place the motorcycle on the cen-
terstand.
2. Turn the key to “SEAT” as ex-
plained above.
IP
_
Do not push inward when turning the
key.
_
3. Fold the seat up.
To close the seat
1. Fold the seat down, and then push
it down to lock it in place.
2. Remove the key from the main
switch if the motorcycle will be left
unattended.
IP
_
Make sure that the seat is properly se-
cured before riding.
_

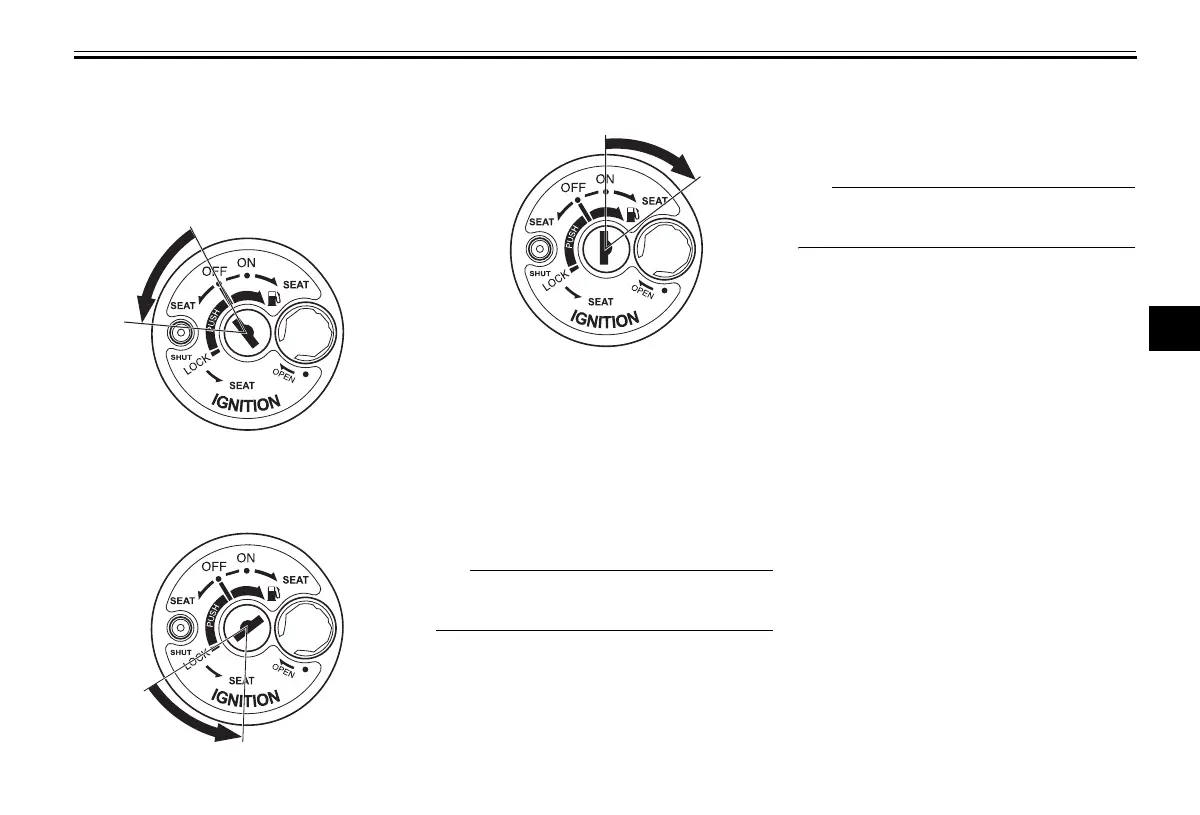

1. Seat Open (in OFF position)
1. Seat open (in LOCK position)
ZAUU0690
1
ZAUU0691
1
1. Seat Open (in ON position)
ZAUU0692
1
