PERIODIC MAINTENANCE AND ADJUSTMENT
7-6
7
EAU18712
Removing and installing
cowlings and panels
The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
a cowling or panel needs to be re-
moved and installed.
EAUU1100
Panel A
To remove the panel
1. Open the seat (see page 4-8.)
2. Remove the screw, and then pull
outward on the areas shown.
To install the panel
1. Place the panel in the original po-
sition, and then install the screw.
2. Close the seat
EAU19482
Panel B
To remove the panel
1. Open the seat. (See page 4-8.)
2. Remove the screws, and then pull
the panel off as shown.
To install the panel
Place the panel in the original position,
and then install the screws.

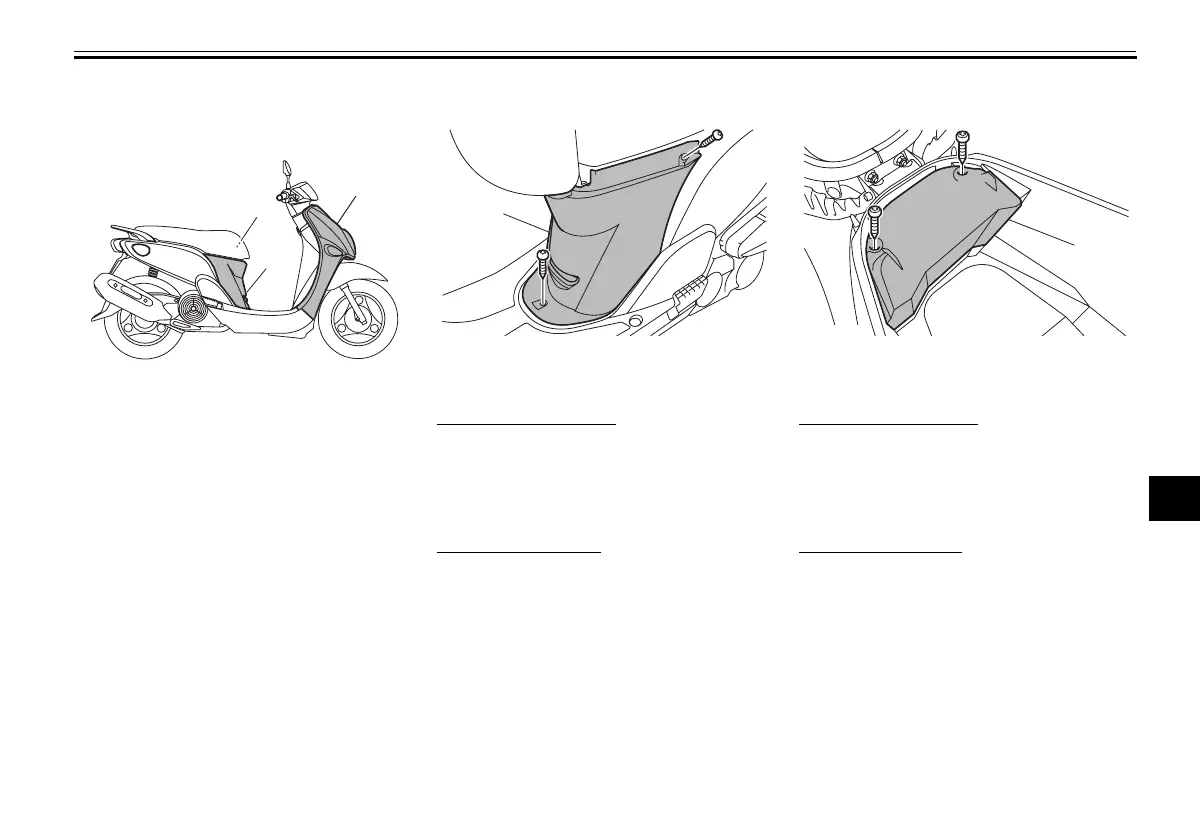

1. Cowling A
2. Panel A
3. Panel B
ZAUU0698
1
2
3
1. Panel A (Screw ✕ 3)
ZAUU0699
1
1. Panel B (Screw ✕ 2)
1
ZAUU0700
