PERIODIC MAINTENANCE AND ADJUSTMENT
7-10
7
3. Remove the engine oil filler cap
and drain bolt B to drain the oil
from the crankcase. NOTICE:
When removing the engine oil
drain bolt, the O-ring, compres-
sion spring, and oil strainer will
fall out. Take care not to lose
these parts.
[ECA11001]
IP
_
When only changing the engine oil, re-
move drain bolt A. When changing the
engine oil and cleaning the engine oil
strainer, remove drain bolt B also.
_
4. Clean the engine oil strainer with
solvent, and then check it for dam-
age and replace it if necessary.
5. Check the O-ring for damage and
replace it if necessary.
6. Install the engine oil strainer, com-
pression spring, O-ring and engine
oil drain bolt, and then tighten the
drain bolt to the specified torque.
IP
_
Make sure that the O-ring is properly
seated.
_
7. Refill with the specified amount of
the recommended engine oil, and
then install and tighten the oil filler
cap.

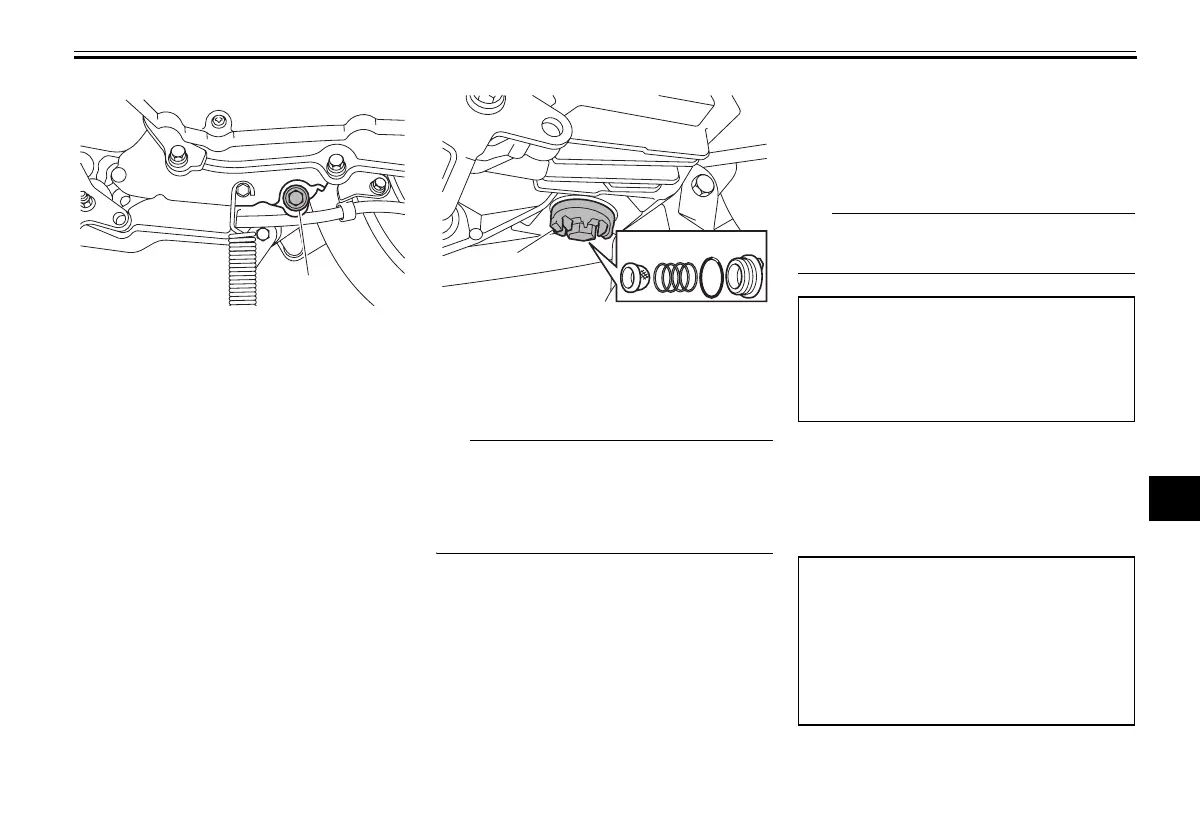

1. Engine oil drain bolt A
ZAUU0706
1
1. Engine oil drain bolt B
2. O-ring
3. Compression spring
4. Oil strainer
ZAUU0707
1
1324
Tightening torque:
Engine oil drain bolt A:
20 Nm (2.0 m·kgf, 14.5 ft·lbf)
Engine oil drain bolt B:
20 Nm (2.0 m·kgf, 14.5 ft·lbf)
Recommended engine oil:
Engine oil brand:
YAMALUBE
Engine oil type:
See page 9-1.
Oil quantity (oil removal):
0.8 L (0.85 US qt, 0.70 Imp.qt)
