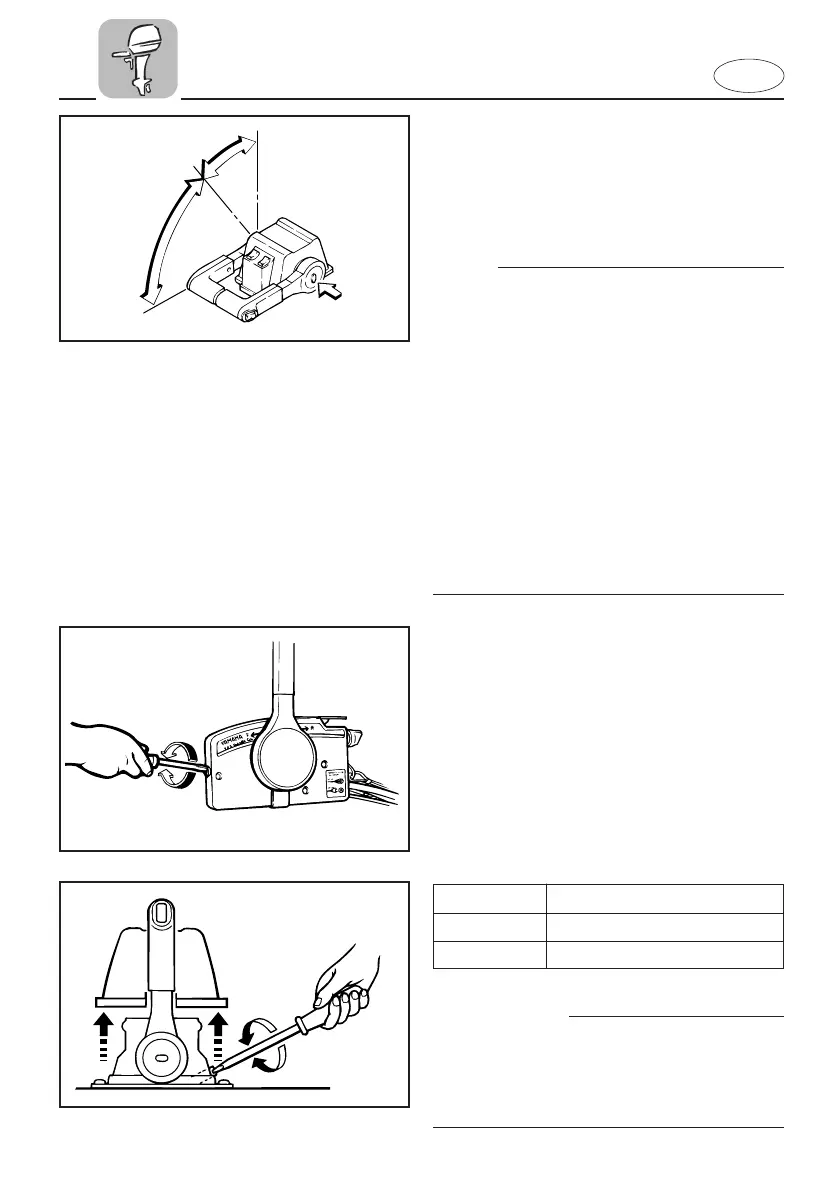

Free Accelerator
To open the throttle without shifting into
either Forward or Reverse, push the free
accelerator button and turn the remote
control lever.
NOTE:
8 The free accelerator button can be oper-
ated only when the remote control lever
is in the Neutral position.
8 After the button is pushed, the remote
control lever must be moved at least
35° to begin opening the throttle.
8 After operating the free accelerator,
return the remote control lever to the
Neutral position. The free accelerator
button will return automatically to its
set position. The remote control will
then engage Forward and Reverse nor-
mally.
1 Fully-open
2 Fully-closed
3 Free accelerator
EMU01155
Throttle Friction Adjusting Screw
A friction device in the remote control box
provides adjustable resistance to move-
ment of the remote control lever, and can
be set according to operator preference.
An adjusting screw is located on the front
of the remote control box.
w
Do not overtighten the friction adjusting
screw. If there is too much resistance, it
may be difficult to move the lever, which
could result in an accident.
Resistance Screw
Increase Turn clockwise
Decrease Turn counterclockwise
