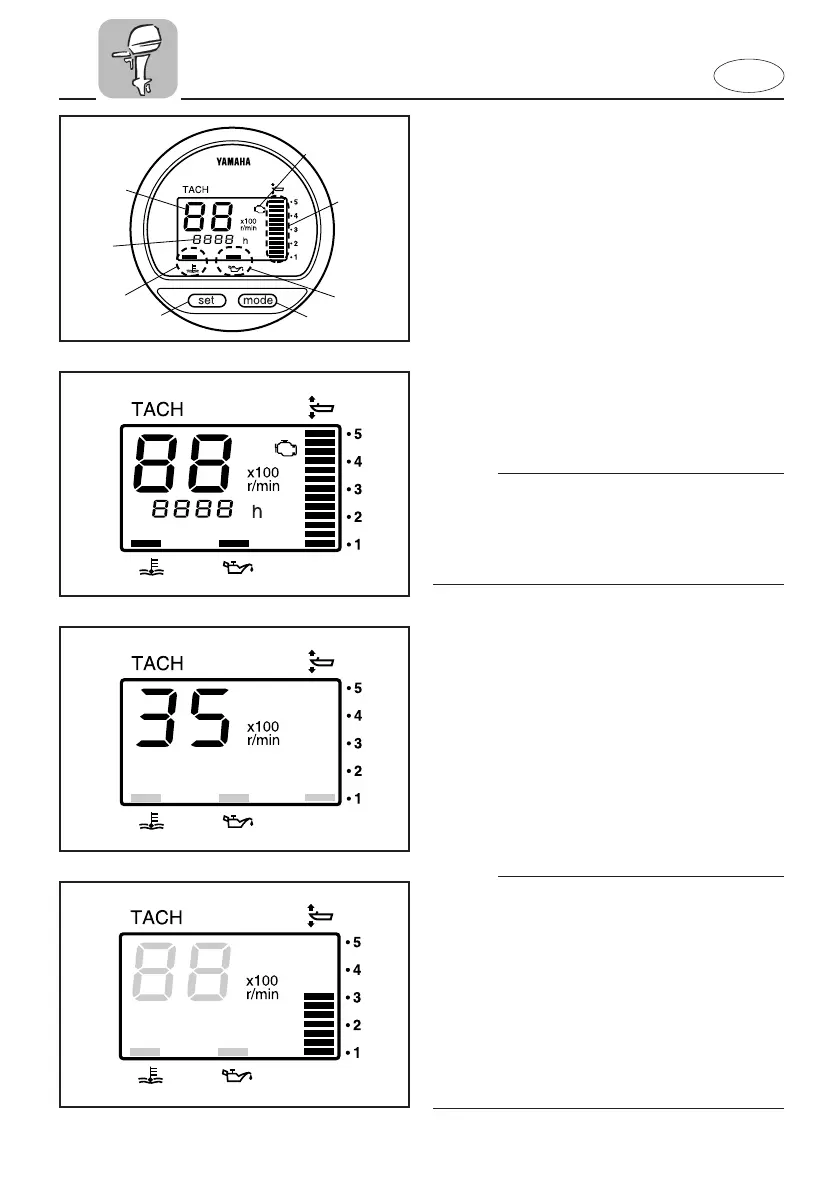

DIGITAL TACHOMETER
This gauge contains the tachometer, trim
meter, hour meter, low oil pressure warn-
ing indicator, overheat warning indicator,
and the engine trouble warning indicator.
1 Tachometer
2 Trim meter
3 Hour meter
4 Low oil pressure warning indicator
5 Overheat warning indicator
6 Engine trouble warning indicator
7 Set button
8 Mode button
NOTE:
All segments of the display will light
momentarily after the main switch is
turned on and will return to normal there-
after.
EMU00136
Tachometer
This meter shows the engine speed.
EMU01109
Trim Meter
This meter shows the trim angle of your
outboard motor.
NOTE:
8 Memorize the trim angles that work
best for your boat under different condi-
tions. Adjust the trim angle to the
desired setting by operating the power
trim and tilt switch.
8 If the trim angle of your motor exceeds
the trim operating range, the top seg-
ment on the trim meter display will start
to blink.
