PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
1. Lug
2. Lug
3. Lug

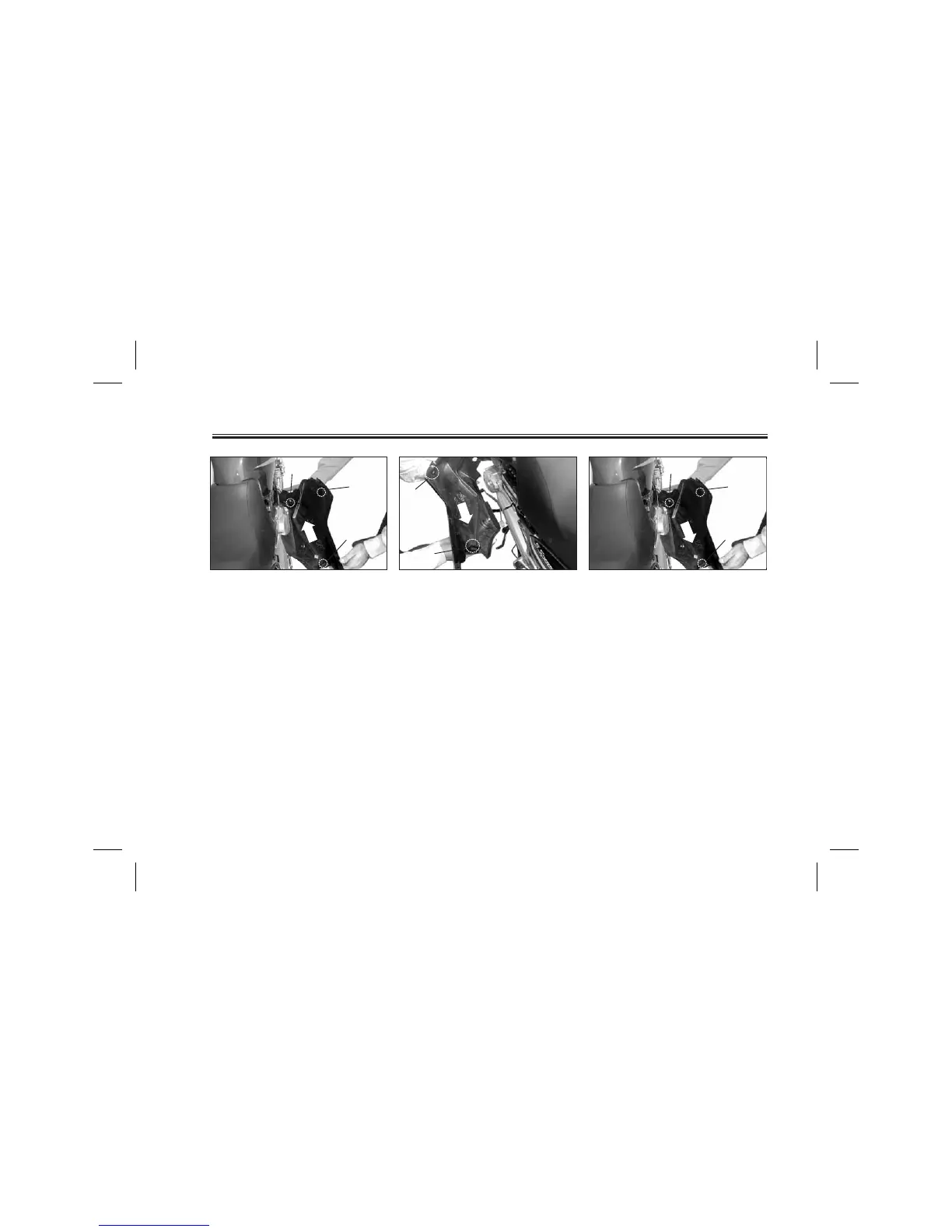

Removal of Panel B
Loosen screw completely and follow
the same procedure as for
removing panel A.
1. Lug
2. Lug
Installation of Panel A
Slide the panel towards the Rear of
the motorcycle for inserting the lug
"2" in the slot given in the frame.
Insert and push the lug "1" in the
fuel tank ensuring proper seating.
After proper seating of the panel A,
lock it.
1. Lug.
2. Lug
3. Lug
Installation of Panel B
Follow the same procedure as given
for installation of panel A and tighten
the screw for locking.
