PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
1. Screw - 2 Nos.
2. Bolt - 1

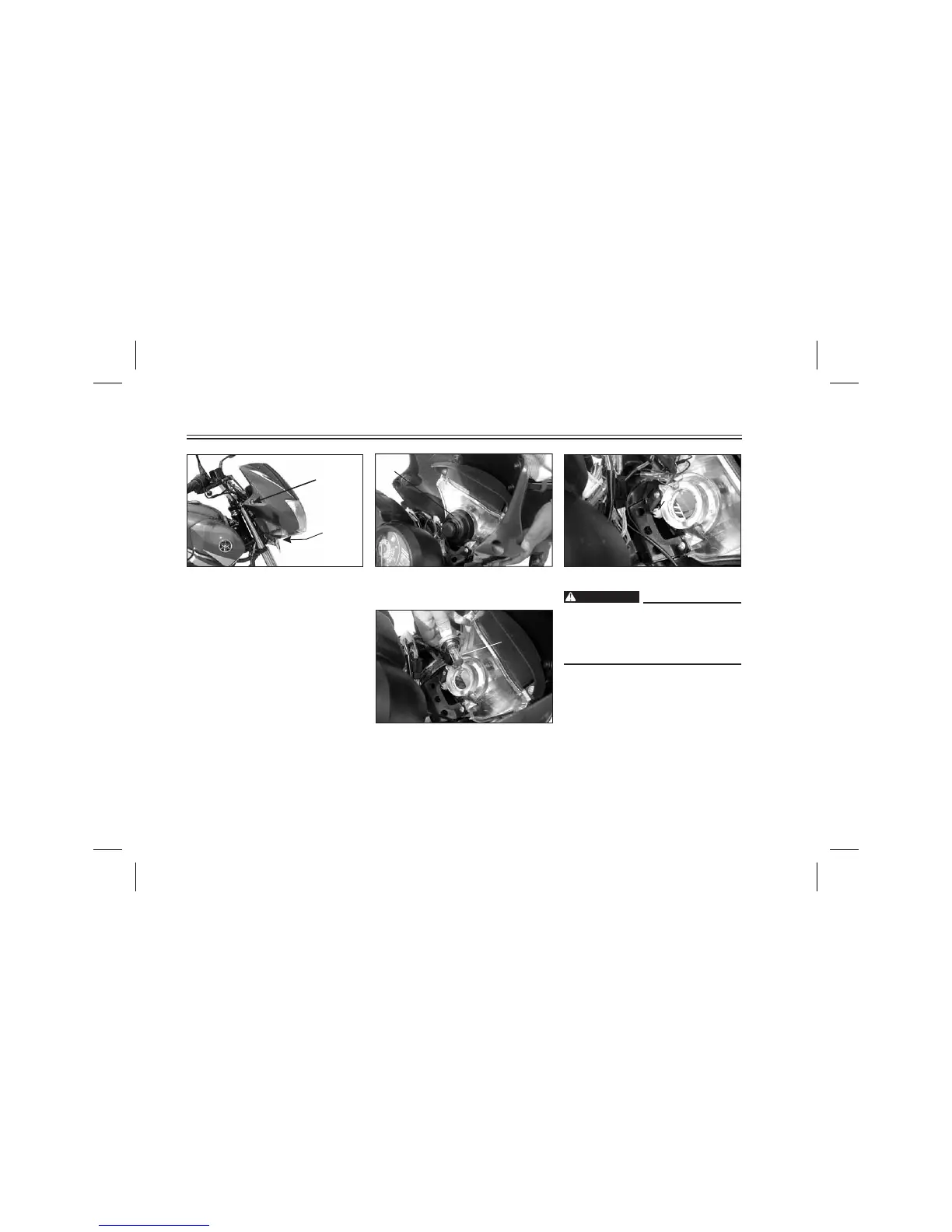

Headlight/Parking bulb
replacement
If the head/parking light bulb burns
out, replace the bulb as follows:
1. Remove the two screws from the
Head light Cowling "1".
2. Loosen the Bolt "2" below the
Headlight Cowling.
3. Slide head light forward.
(LH & RH)
No.
1. Bulb holder - 1 Nos.
1. Parking Bulb 1 No.
Keep flammable products and
your hands away from the bulb
while it is on, as it is hot. Do not
touch the bulb until it cools down.
5. Put a new bulb into position and
secure it in place with the bulb
holder as the case may be.
6. Install the head light assy.
7. If the headlight beam adjustment
is necessary, ask a YAMAHA
dealer to make adjustment.
WARNING
1.Head Light Bulb-1No.
4. Remove the defective head light
bulb from the bulb holder, if
fused.
5. Remove the parking bulb if fused.
To Next Page
