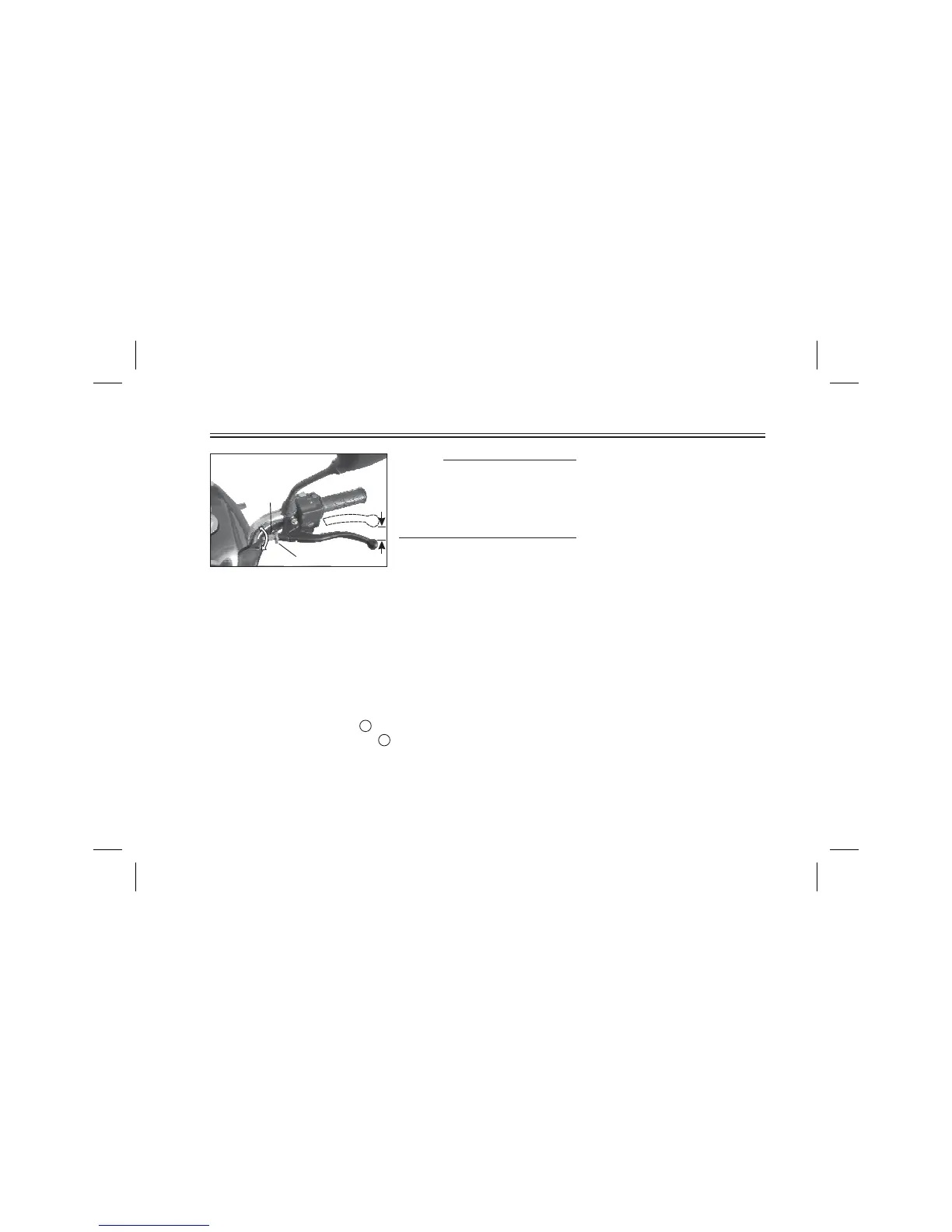

1. Locknut
2. Adjusting Bolt
3. Free play (10~15 mm)
Clutch lever free play
adjustment
The clutch lever free play should be
adjusted to 10 ~ 15 mm. If the free
play is incorrect, adjust as follows.
1 . Loosen the locknut.
2. Turn the adjusting bolt at the
clutch lever in direction b to
increase free play or in direction a
to decrease free play.
3. Tighten the locknut.
If proper adjustment cannot be
obtained or the clutch does not work
correctly, ask a dealer to
inspect the internal clutch
mechanism.
YAMAHA
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
NOTE :
a
b
1
2
3
