PREPARATIONS ➤ Connecting a TV En 20

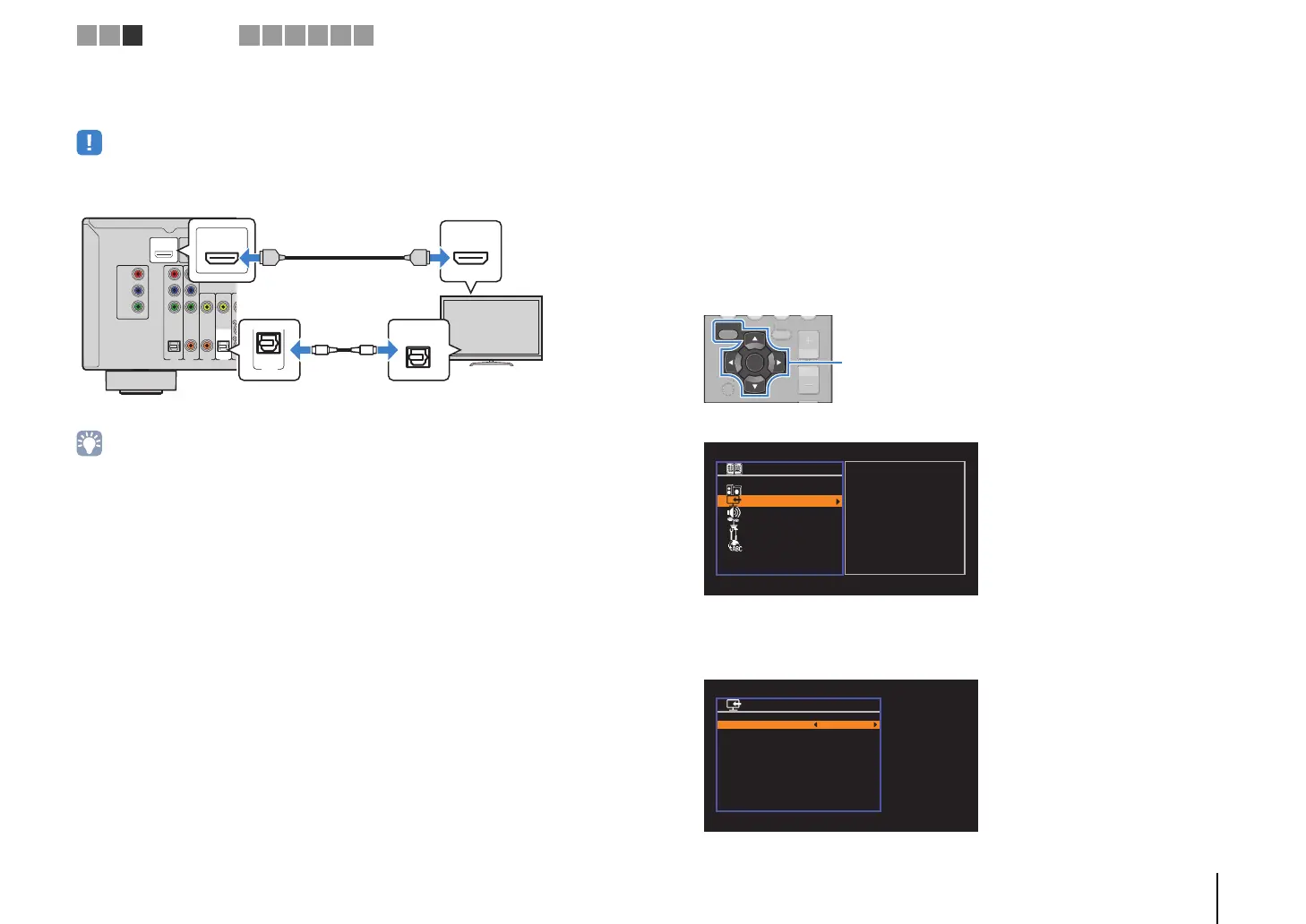

■ Connection Method 2 (HDMI Control-compatible TV)
Connect the TV to the unit with an HDMI cable and a digital optical cable.
• The following explanation is based on the assumption that you have not changed the “HDMI” parameters
(p.59) in the “Setup” menu.
• By connecting a TV to the unit with an HDMI cable, you can control your iPod or USB storage device, or
configure the settings of the unit with the menu displayed on the TV.
❑ Necessary settings
To use HDMI Control, you need to configure the following settings.
For details on settings and operating your TV, refer to the instruction manual for the TV.
1
After connecting external devices (such as a TV and playback
devices) and power cable of the unit, turn on the unit, TV, and
playback devices.
2
Configure the settings of the unit.
a Switch the TV input to display video from the unit.
b Press SETUP.
c Use the cursor keys to select “HDMI” and press ENTER.
d Press ENTER again.
e Use the cursor keys (q/w) to select “HDMI Control” and the cursor keys (e/r) to
select “On” as shown below.
f Press SETUP.
AV 1
AV 2
AV 3
OPTICAL COAXIAL COAXIAL OPTICAL
(
TV
)
(
CD
)
COMPONENT
VIDEO
P B
Y
VIDEO
AV 4
COMPONENT
VIDEO
MONITOR OUT
P R
P B
Y
P
R
HDMI 1
(
BD/DVD
)
HDMI 2
HDMI
OUT
ARC
HDMI
OUT
ARC
HDMI
HDMI
HDMI
AV 4
(
TV
)
OPTICAL
OPTICAL
OO
The unit (rear)
HDMI OUT jack
AV 4 (OPTICAL) jack Audio output
(digital optical)
TV
HDMI input
OPTION
SETUP
RETURN
VOLUME
ENTER
O
PTIO
N
R
ET
U
R
N
V
O
LU
M
E
SETUP
Cursor keys
ENTER
Setup
Speaker
HDMI
Sound
ECO
Function
Language
Configuration
Configuration
HDMI Control
Audio Output
TV Audio Input
Standby Sync
ARC
SCENE
On
AV4
Auto
On
Back: RETURN
1 2 3
TV connection
4 5 6 7 8 9

Yamaha HTR-3065 Specifications

General

RMS rated power	675 W
Audio output channels	5.1 channels
Total Harmonic Distortion (THD)	0.9 %
Dynamic power per channel (4 Ohm)	160 W
Dynamic power per channel (8 Ohm)	110 W
Power output per channel (1KHz@6 Ohm)	100 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	4
USB ports quantity	1
Digital audio optical in	2
Component video (YPbPr/YCbCr) in	24
Digital audio optical out	0
Connectivity technology	Wired
Speakers connectivity type	-
Ethernet LAN	No
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
Power consumption (standby)	0.3 W
HDMI ports quantity	5

Weight and Dimensions

Depth	315 mm
Width	435 mm
Height	151 mm
Weight	7500 g
