12
R
L
CENTER
SUB
WOOFER
6CH INPUT
DIGITAL
OUTPUT
DIGITAL
INPUT
VIDEOAUDIOAUDIO
1
2
3
4
5
MD/CD-R
MD/CD-R
DVD
D-TV/CBL
OPTICAL
OPTICAL
COAXIAL
VCR-1
OUT
IN
MONITOR OUT
OUT
VCR 2
/DVR
IN
DVD
D-TV
/CBL
MD
/CD-R
OUT
(REC)
IN
(PLAY)
SURROUND
MAIN
CD
CD
S VIDEOVIDEO
S VIDEOVIDEO
R
L
TUNER
75Ω UNBAL.
FM
ANT
GND
AM
ANT
P R
DVD
A
P
B
COMPORNENT V
D-TV
/CBL
B
MONITOR
OUT
OPTICAL
INPUT
OPTICAL
OUTPUT
O
O
C
O
C

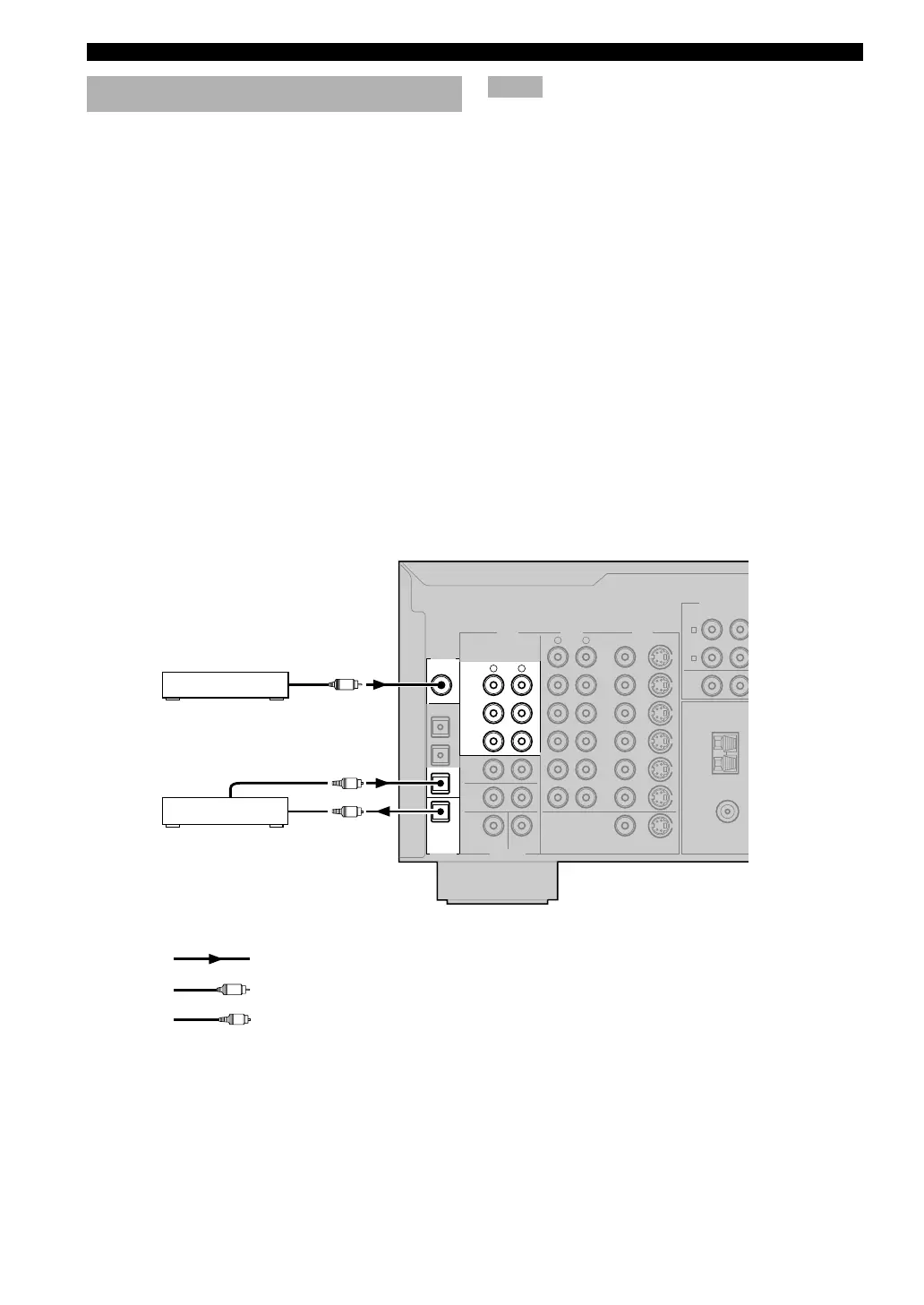

Connecting audio components
■ Connecting a CD player
Connect the coaxial digital output jack on your CD player
to the DIGITAL INPUT CD jack on this unit.
y
• Use the AUDIO jacks on this unit for a CD player which does
not have coaxial digital output jack.
■ Connecting a CD recorder or MD
recorder
Connect the optical digital signal input jack on your CD
recorder or MD recorder to the DIGITAL OUTPUT MD/
CD-R jack on this unit for digital recording.
Connect the optical digital output jack on your CD
recorder or MD recorder to the DIGITAL INPUT MD/
CD-R jack on this unit to play a source from your
recording component.
y
• Use the AUDIO jacks on this unit for a CD recorder or MD
recorder which does not have optical digital input or output
jack.
indicates signal direction
CD player
Notes
• Once you have connected a recording component to this unit,
keep its power turned on while using this unit. If the power is
off, this unit may distort the sound from other components.
• The DIGITAL OUTPUT jack and analog OUT (REC) jacks
are independent. The DIGITAL OUTPUT jack only outputs
digital signals, while the OUT (REC) jacks output analog
signals only.
indicates coaxial cables
indicates optical cables
CD recorder or
MD recorder
CONNECTIONS
