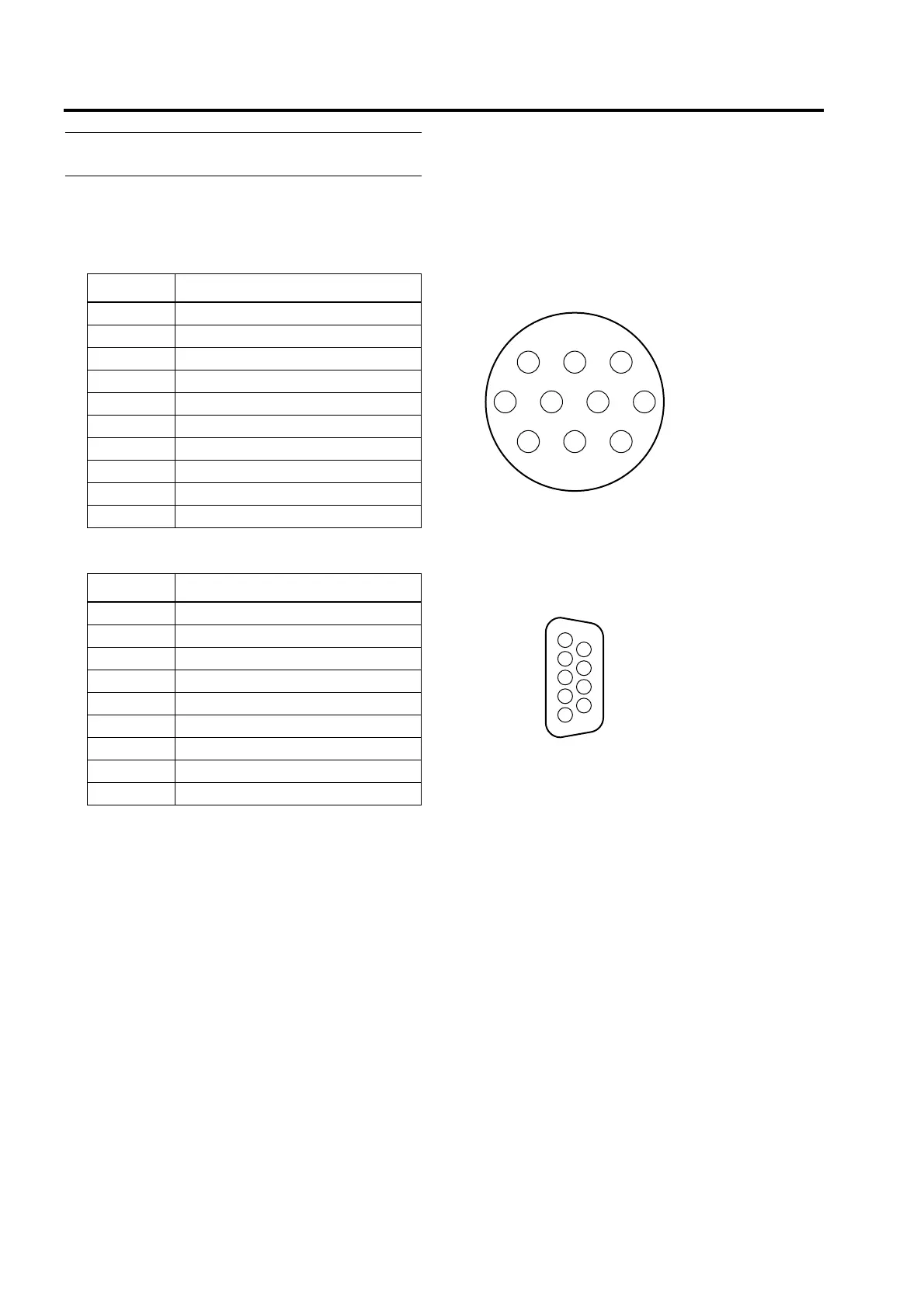

Connector wiring
DC POWER INPUT
VCA EXTERNAL I/O
Included items
Power supply connection cable (3 m, 10 pin)
Pin No. Signal name
1 Power supply remote
2 +15 V
3 ±15 V GND
4 +48 V GND
5 –15 V
6 +12 V
7 +12V GND/ power supply remote
8 Power supply remote
9 +48 V
10 FRAME GND
Pin No. Signal name
1 VCA GROUP 1
2 VCA GROUP 2
3 VCA GROUP 3
4 VCA GROUP 4
5 VCA GROUP 5
6 VCA GROUP 6
7 VCA GROUP 7
8 VCA GROUP 8
9 GND
3 2 1
1
2
6
7
8
9
3
4
5
10 9 8
7 6 5 4
