Yamaha MCR-E700 - Printed Circuit Board

12345678
A
B
C
D
E
F
13
RDX-E700/NX-E700

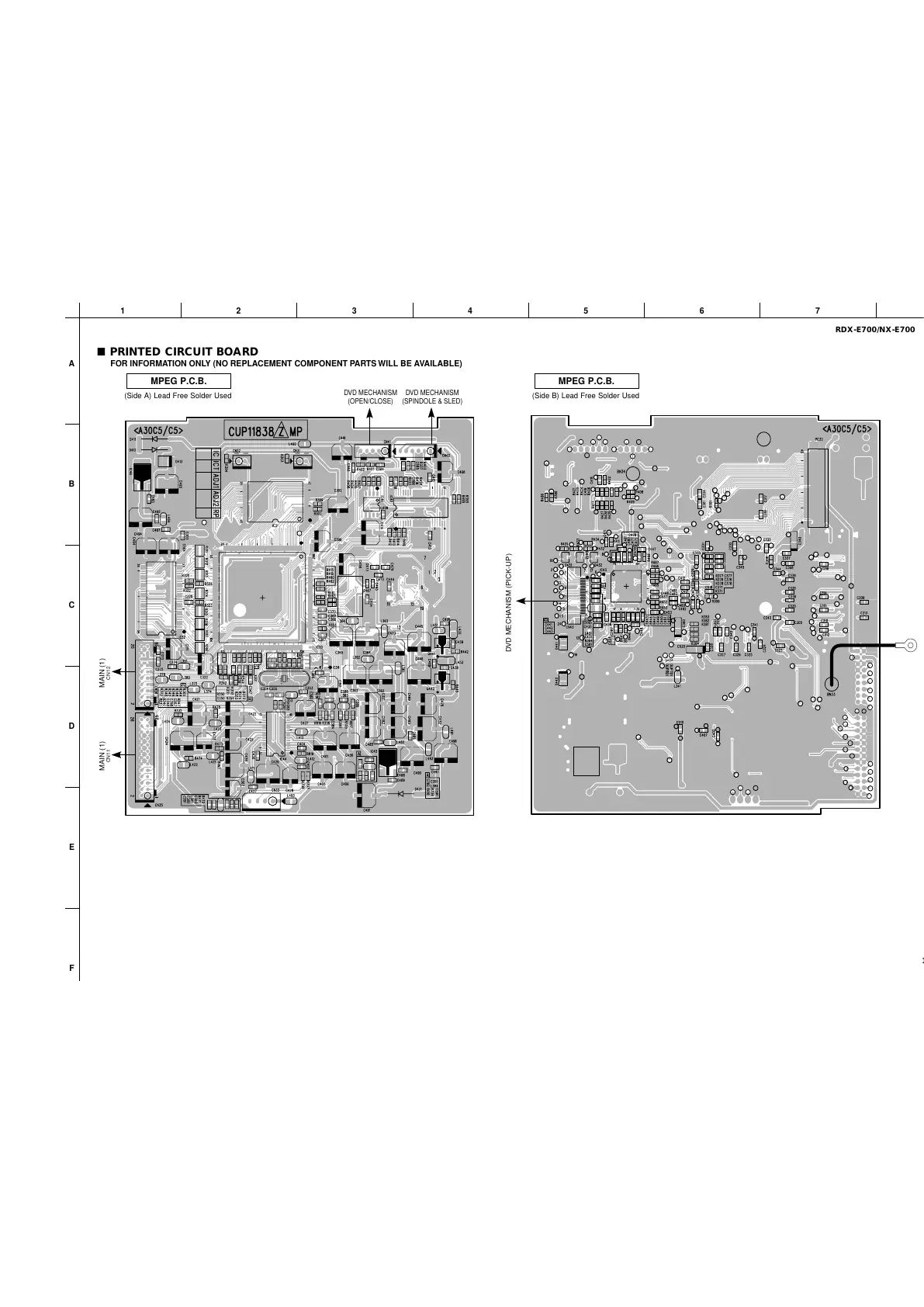

■ PRINTED CIRCUIT BOARD
FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE)
MPEG P.C.B.
(Side B) Lead Free Solder Used
MAIN (1)
CN12
MAIN (1)
CN11
DVD MECHANISM
(SPINDOLE & SLED)
DVD MECHANISM
(OPEN/CLOSE)
MPEG P.C.B.
(Side A) Lead Free Solder Used
DVD MECHANISM (PICK-UP)
