RDX-E700/NX-E700

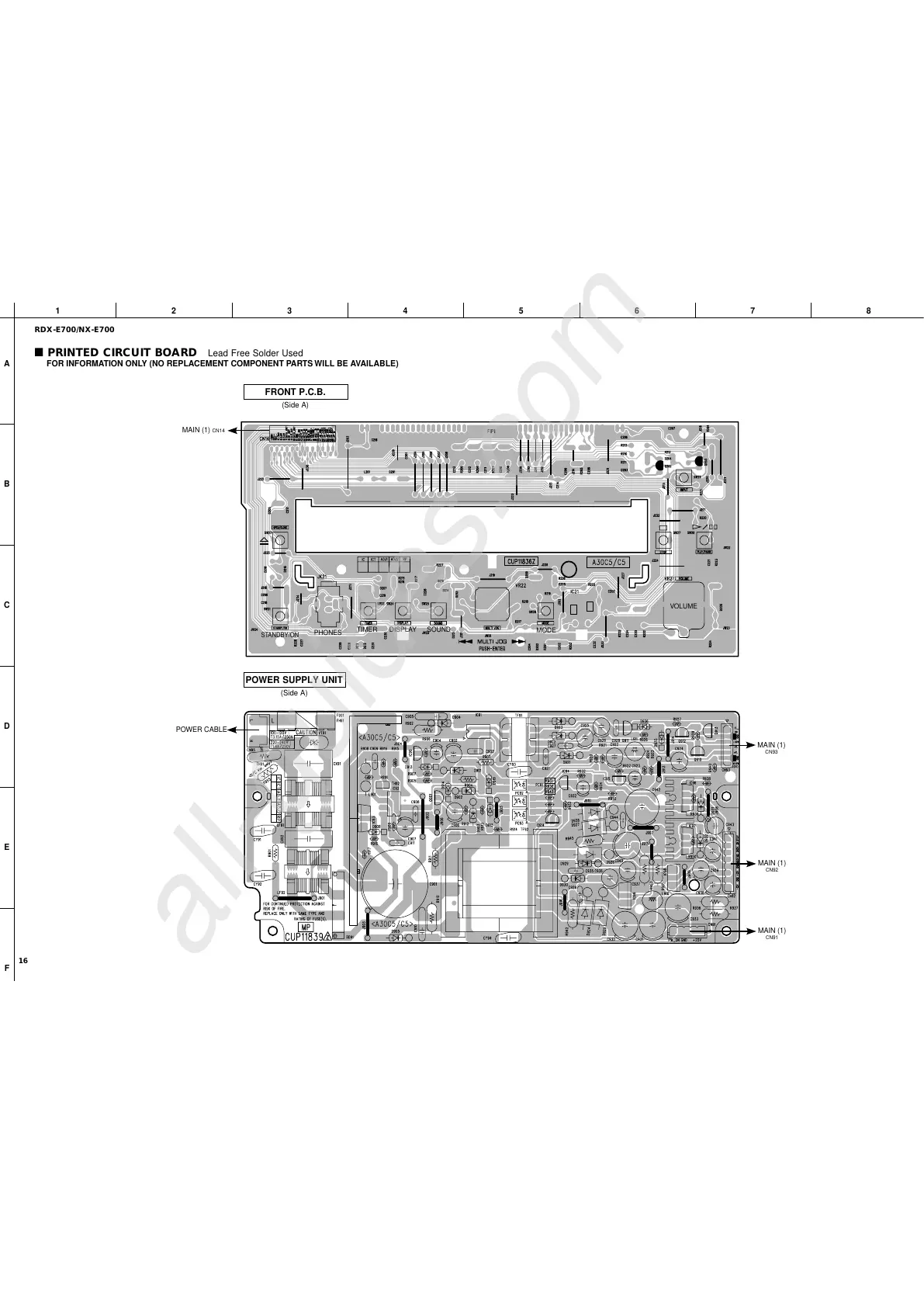

■ PRINTED CIRCUIT BOARD Lead Free Solder Used
POWER CABLE
MAIN (1)
CN93
MAIN (1)
CN92
MAIN (1)
CN91
POWER SUPPLY UNIT
(Side A)
FRONT P.C.B.
(Side A)
MAIN (1) CN14
VOLUME
MODE
SOUND
DISPLAY
TIMER
PHONES
STANDBY/ON
FOR INFORMATION ONLY (NO REPLACEMENT COMPONENT PARTS WILL BE AVAILABLE)
