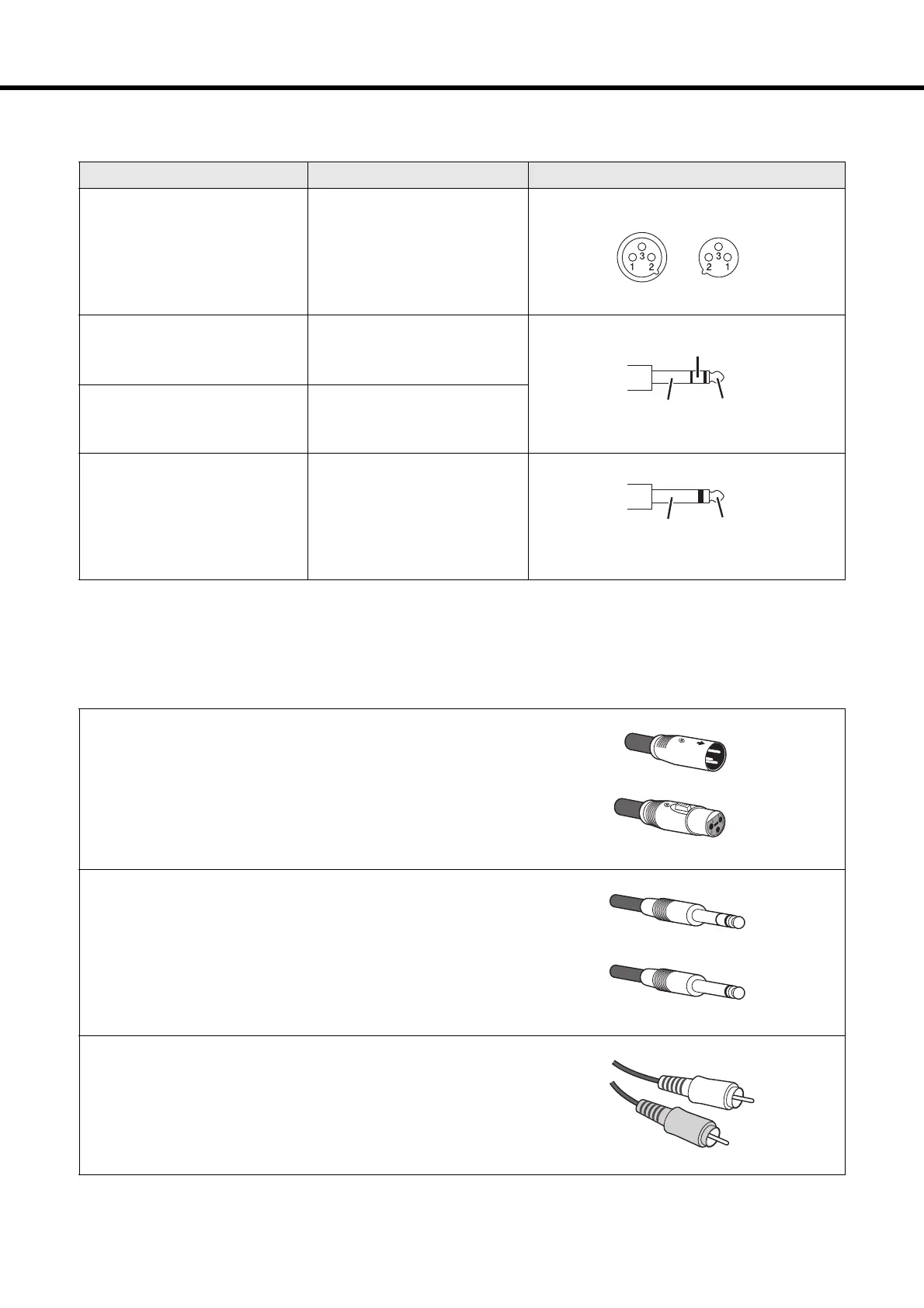

Technical Specifications
Jack and Connector List
These jacks also can be connected with TS phone connectors. If you use TS phone connectors, the connection will be unbalanced.
Connector Types
Jacks and Connectors Polarities Configurations
MIC/LINE, STEREO OUT
Pin 1: Ground
Pin 2: Hot (+)
Pin 3: Cold (–)
XLR Jack
MIC/LINE*, AUX SEND,
MONITOR OUT, STEREO OUT
Tip: Hot (+)
Ring: Cold (–)
Sleeve: Ground
TRS Phone Connector
PHONES
Tip: L
Ring: R
Sleeve: Ground
LINE (stereo input channels)
Tip: Hot
Sleeve: Ground
TS Phone Connector
XLR
This 3-pin connector is resistant to externally induced noise, and is used pri-
marily for balanced connections. With properly designed receiving circuitry,
cables with this type of connector can also be used for unbalanced signals.
XLR type connectors are the standard for microphone connections as well as
most professional audio gear.
Phone
Phone connectors are available in TRS and TS types. TRS types are used for
stereo headphone jacks, insert jacks, and also for carrying balanced signals in
many cases. TS types are used to carry unbalanced signals -for example,
electric guitar cables.
RCA Pin
This type of unbalanced connector is most commonly found on home audio
and video equipment. RCA type pin jacks are often color coded: white for left
audio channel and red for right audio channel, for example.
INPUT OUTPUT
Ring
TipSleeve
Sleeve Tip
Male
Female
TRS Phone
TS Phone
White
Red

Yamaha MG12XUK Specifications

General

Frequency range	20 - 48000 Hz
Channels quantity	12 channels
Supported sample rates	192 kHz
Digital sound processing	24 bit
AUX in	Yes
Monitor out	1
Line inputs (RCA)	12
Number of microphone inputs	6
Product color	Black
Video capability	No
USB connector type	USB Type-B
Phantom power	+48 V
Power consumption (typical)	22.9 W
Total Harmonic Distortion (THD)	0.02 %

Weight and Dimensions

Depth	297 mm
Width	315 mm
Height	91 mm
Weight	3000 g
