Replacing a headlight bulb
This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
1. Remove cowling D. (See
page 6-8.)
2. Remove the headlight bulb cover
by turning it counterclockwise.
3. Disconnect the headlight coupler.
NOTE:
●
There is one coupler for the low
beam headlight.
●
There are two couplers for the high
beam headlight.
4. Unhook the headlight bulb holder,
and then remove the defective
bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled

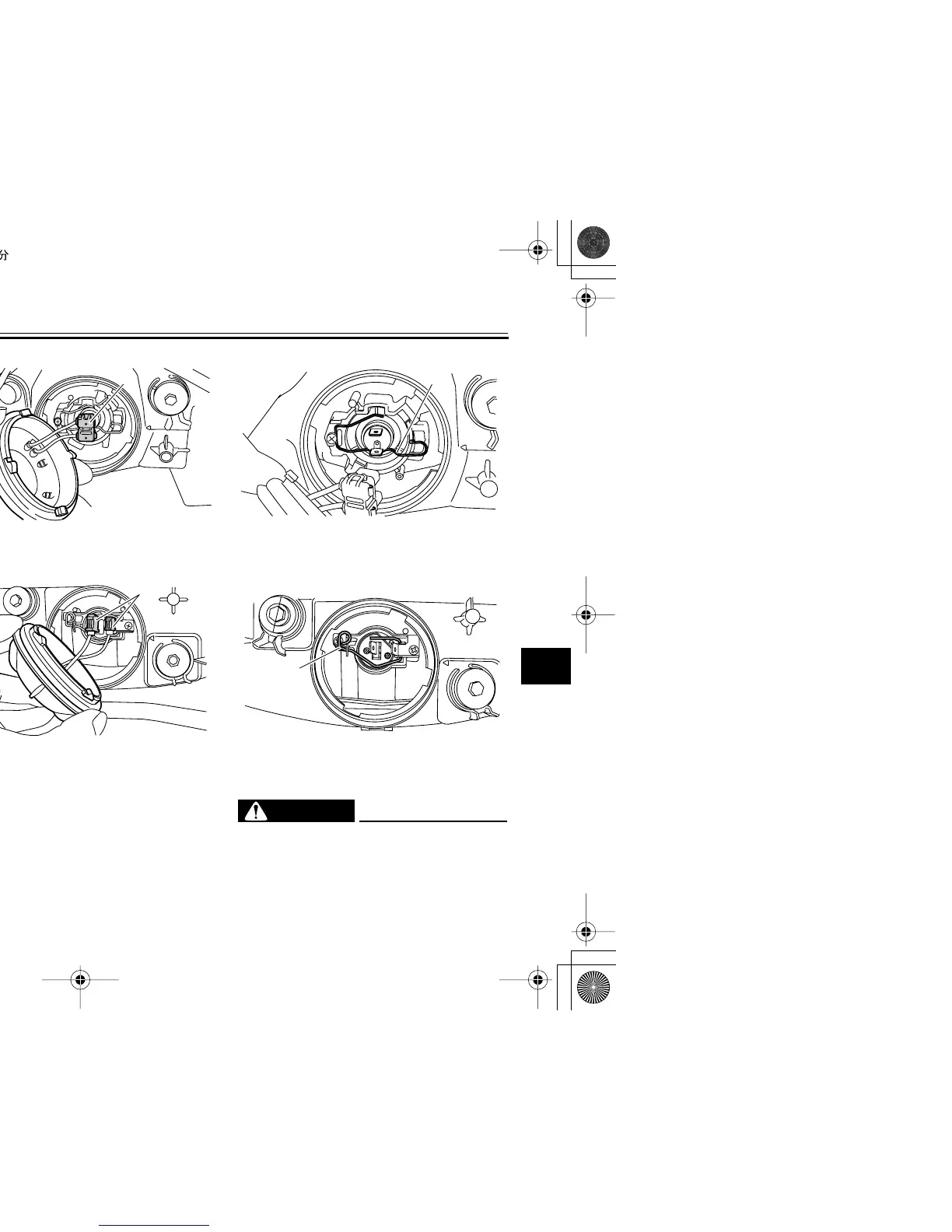

1. Headlight bulb cover
1
1. Headlight coupler
1. Headlight coupler
1
1
1. Headlight bulb holder
1. Headlight bulb holder
1
1
