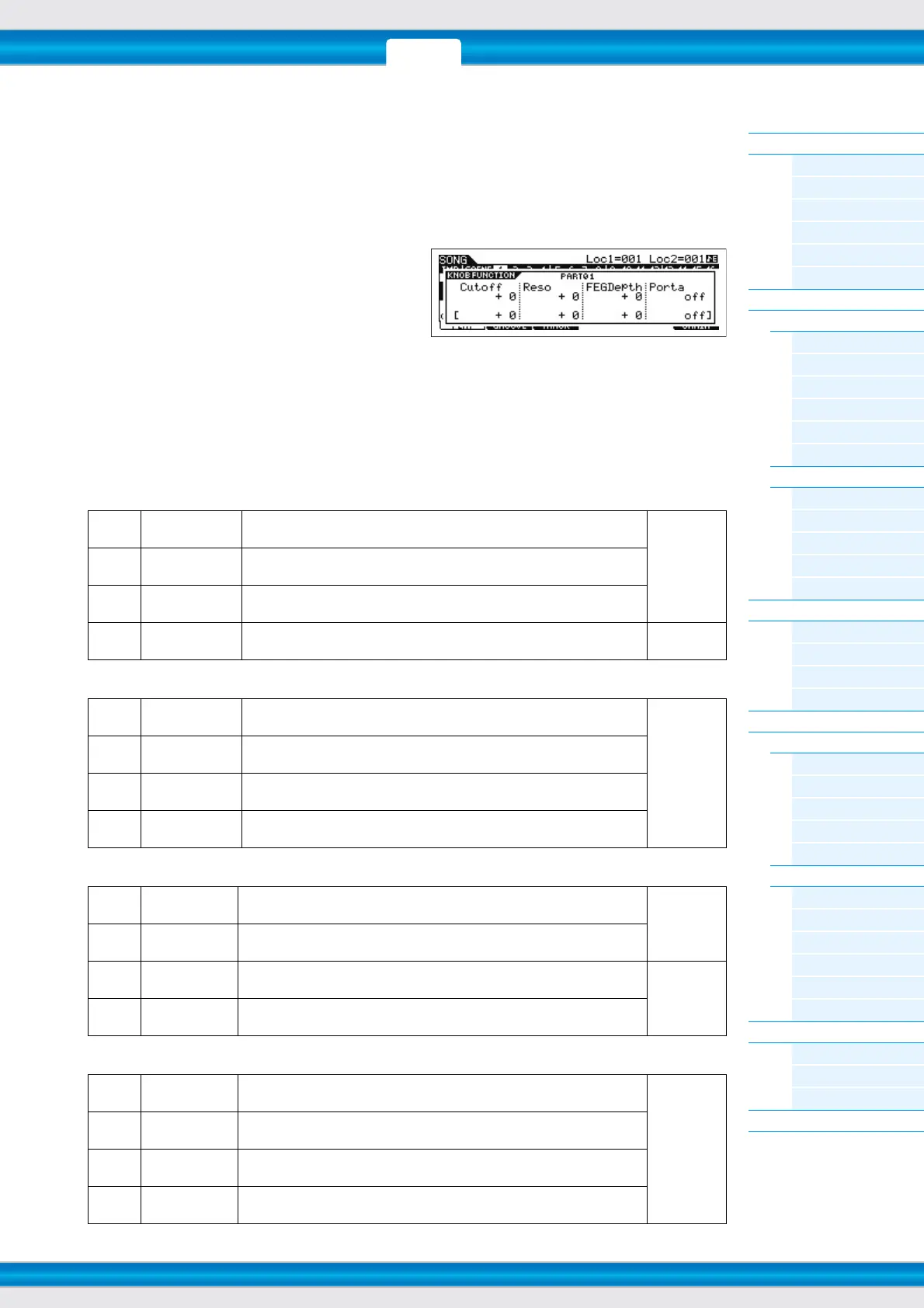

 Editing a Performance by using the Knobs
By using the knobs on the front panel, you can adjust various parameters such as pan, effect, cutoff frequency and
resonance for each Part (Track) of the Mixing.
1 Press one of the Knob Function buttons (1 or 2) to
call up the Control Function display.
2 Select the Part you want to edit.
Press a number button corresponding to the Part number.
3 Select the functions assigned to Knobs 1 – 4 or Knobs 5 – 8.
Each time Knob Function 1 button is pressed, the lamp lights alternatively in descending order, [TONE1] | [TONE2]
| [TONE3]. The functions assigned to Knobs 1 – 4 will be switched according to the operation of Knob Function 1
button. Each time Knob Function 2 button is pressed, the lamp lights alternatively in descending order, [EQ] |
[EFFECT] | [ARP]. The functions assigned to Knobs 5 – 8 will be switched according to the operation of Knob
Function 2 button. When each lamp is turned on, the functions assigned to the Knobs are as follows.
When the [TONE 1] lamp is turned on:
When the [TONE 2] lamp is turned on:
When the [TONE 3] lamp is turned on:
When the [EQ] lamp is turned on:
Knob 1 CUTOFF [SONG] or [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F4] TONE  [SF2] FILTER  “Cutoff”
page 118
Knob 2 RESONANCE [SONG] or [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F4] TONE  [SF2] FILTER  “Resonance”
Knob 3 FEG DEPTH [SONG] or [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F4] TONE  [SF2] FILTER  “FEGDepth”
Knob 4 PORTAMENTO [SONG] or [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F1] VOICE  [SF4] PORTA  “Time”
page 118
Knob 1 ATTACK [SONG] or [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F4] TONE  [SF4] AEG  “Attack”
page 119
Knob 2 DECAY [SONG] or [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F4] TONE  [SF4] AEG  “Decay”
Knob 3 SUSTAIN [SONG] or [PATTERN] 
Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F4] TONE  [SF4] AEG  “Sustain”
Knob 4 RELEASE [SONG] or [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F4] TONE  [SF4] AEG  “Release”
Knob 1 VOLUME [SONG]  Song selection  [MIXING]  [EDIT]  Part selection  [F2]
OUTPUT  [SF1] VOL/PAN  “Volume”
page 118
Knob 2 PAN [SONG] or [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F2] OUTPUT  [SF1] VOL/PAN  “Pan”
Knob 3 ASSIGN 1 [SONG] or [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F1] VOICE  [SF6] OTHER  “Assign 1”
page 118
Knob 4 ASSIGN 2 [SONG] or [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F1] VOICE  [SF6] OTHER  “Assign 2”
Knob 5 LOW [SONG] / [PATTERN]  Song/Pattern selection  [MIXING]
 [EDIT]  Part
selection  [F3] EQ  “LOW GAIN”
page 118
Knob 6 MID F [SONG] / [PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F3] EQ  “MID FREQ”
Knob 7 MID [SONG] /[PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F3] EQ  “MID GAIN”
Knob 8 HIGH [SONG]/[PATTERN]  Song/Pattern selection  [MIXING]  [EDIT]  Part
selection  [F3] EQ  “HIGH GAIN”
