Yamaha MT01X - Description; Left View

DESCRIPTION
2-1
2
EAU10410

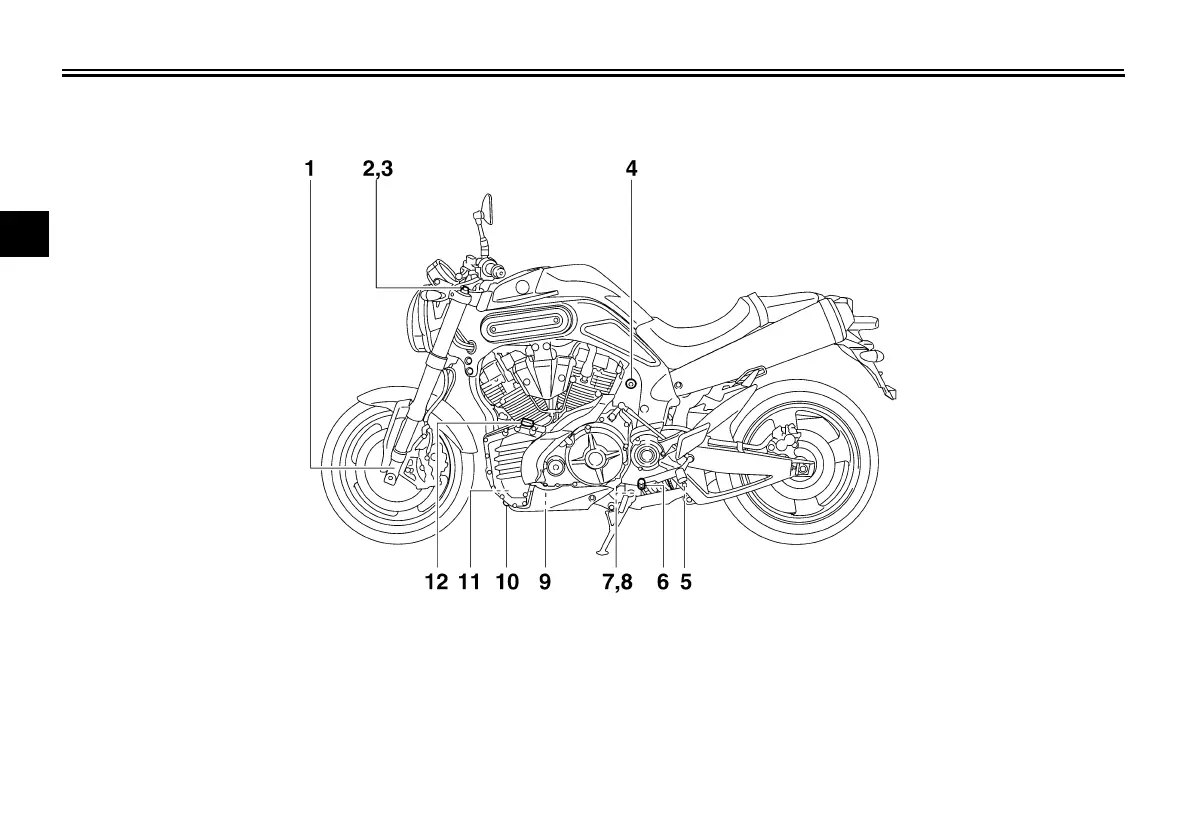

Left view
1. Front fork compression damping force adjusting bolt (page 3-15)
2. Front fork rebound damping force adjusting screw (page 3-15)
3. Front fork spring preload adjusting bolt (page 3-15)
4. Seat lock (page 3-14)
5. Shock absorber assembly compression damping force adjusting screw
(page 3-16)
6. Shift pedal (page 3-11)
7. Shock absorber assembly spring preload adjusting nut (page 3-16)
8. Shock absorber assembly rebound damping force adjusting knob
(page 3-16)
9. Engine oil drain bolt (crankcase) (page 6-8)
10.Engine oil drain bolt (oil tank) (page 6-8)
11.Engine oil filter cartridge (page 6-8)
12.Engine oil filler cap (page 6-8)
