PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU18760
Removing and installing the
cowling
The cowling shown above needs to be
removed to perform some of the main-
tenance jobs described in this chapter.
Refer to this section each time the
cowling needs to be removed and in-
stalled.
EAU36831
Cowling
To remove the cowling
Remove the bolts, and then pull the
cowling off as shown.
To install the cowling
Place the cowling in the original posi-
tion, and then install the bolts.
NOTE:
Make sure that the grommet fits over
the projection.

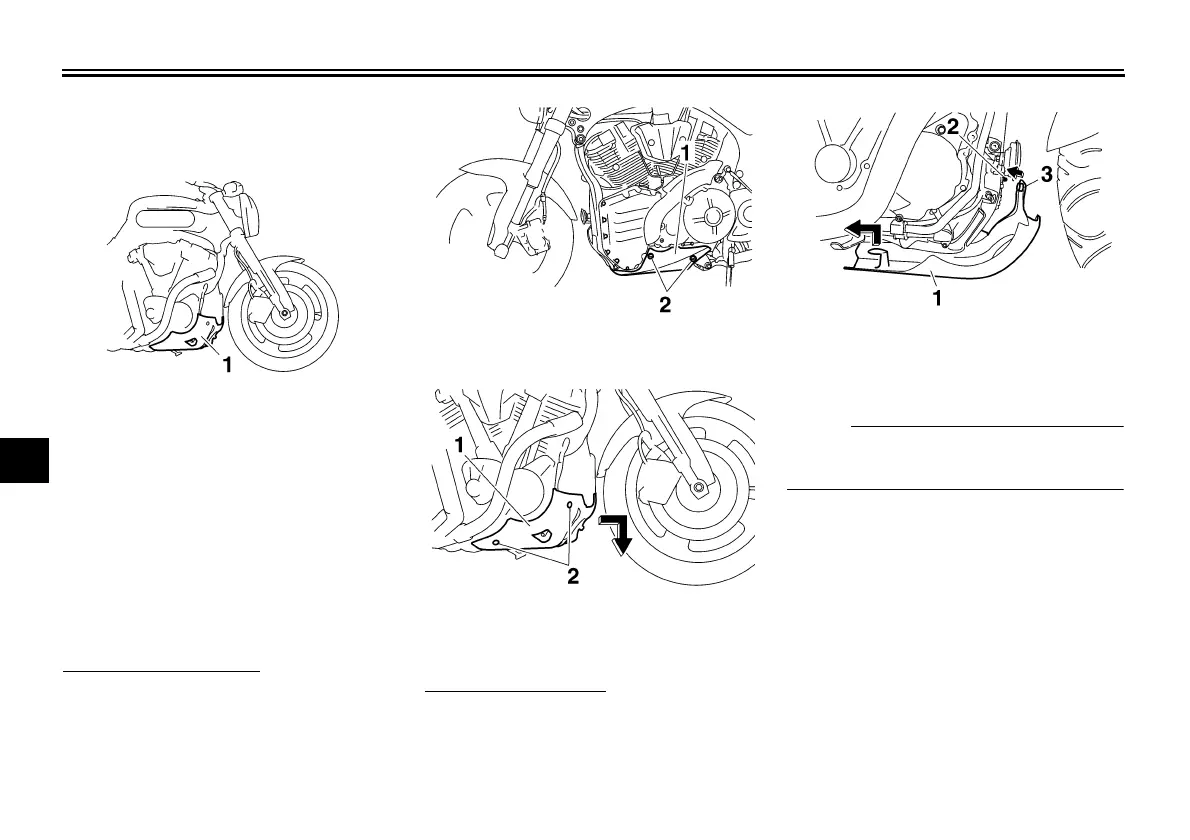

1. Cowling
1. Cowling
2. Bolt
1. Cowling
2. Bolt
1. Cowling
2. Projection
3. Grommet
