Yamaha MT01X - Controls and Instruments

DESCRIPTION
2-3
2
EAU10430

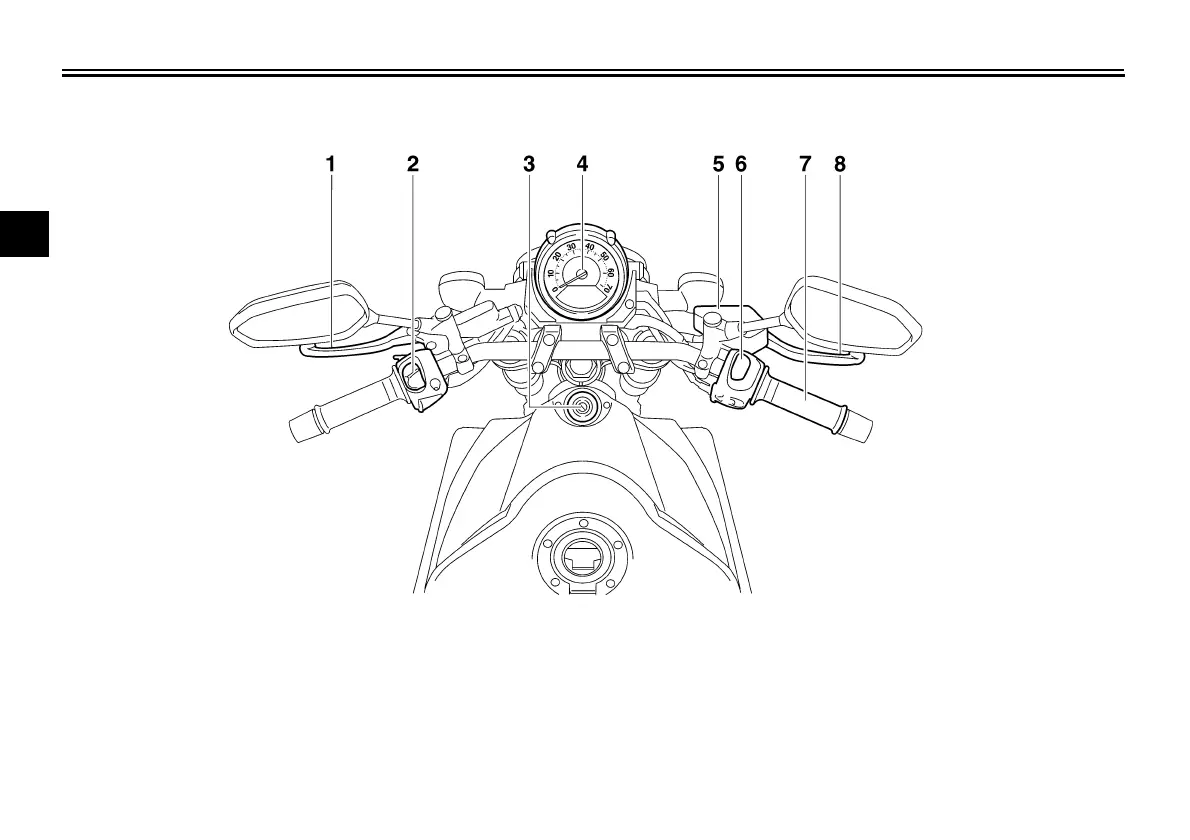

Controls and instruments
1. Clutch lever (page 3-10)
2. Left handlebar switches (page 3-9)
3. Main switch/steering lock (page 3-2)
4. Multi-function display (page 3-5)
5. Front brake fluid reservoir (page 6-17)
6. Right handlebar switches (page 3-9)
7. Throttle grip (page 6-12)
8. Brake lever (page 3-11)
