Replacing a headlight bulb
This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
To replace a headlight bulb
1. Remove the headlight unit by re-
moving the bolts on each side.
To replace the high beam head-
light bulb
a. Remove the headlight bulb
holder cover by turning it coun-
terclockwise.
b. Disconnect the headlight cou-
pler, and then unhook the
headlight bulb holder.
c. Remove the defective bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down.
d. Place a new headlight bulb into
position, and then secure it with
the bulb holder.

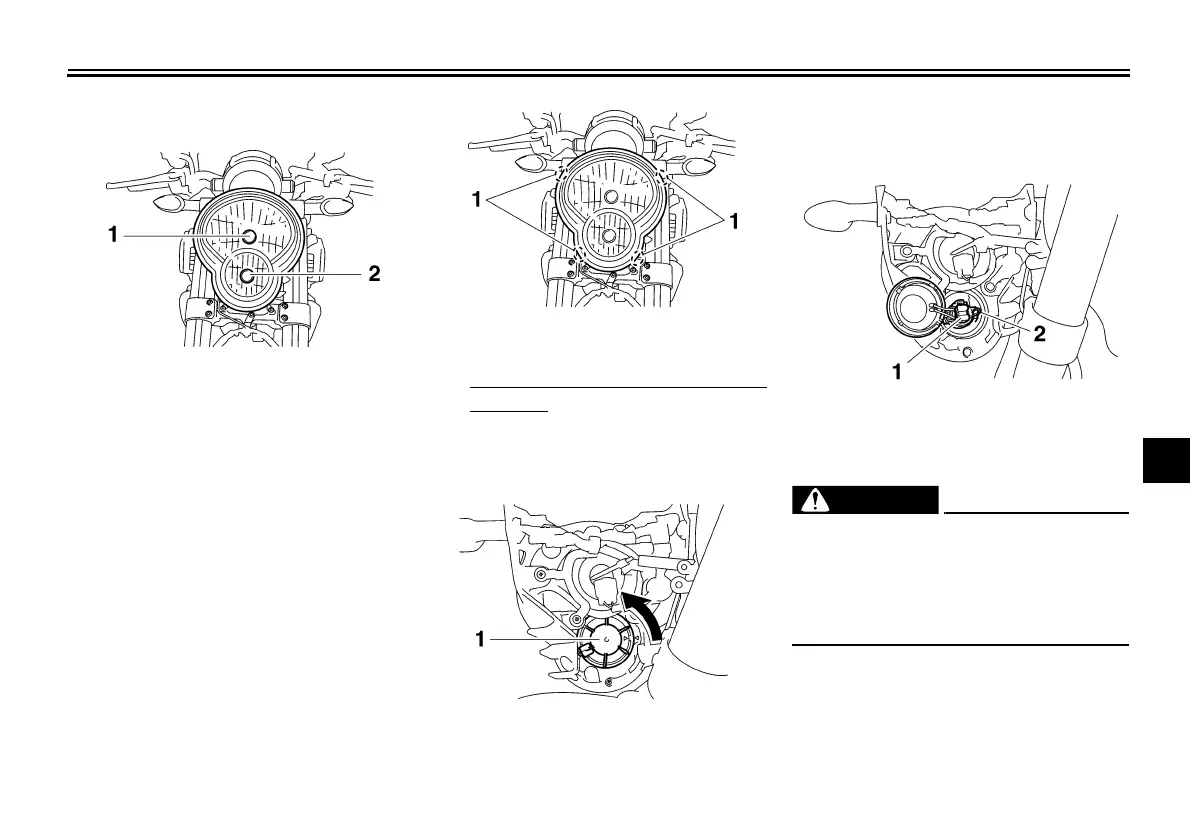

1. Low beam headlight bulb
2. High beam headlight bulb
1. Bolt
1. Headlight bulb holder cover
1. Headlight coupler
2. Headlight bulb holder
