PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAU24202

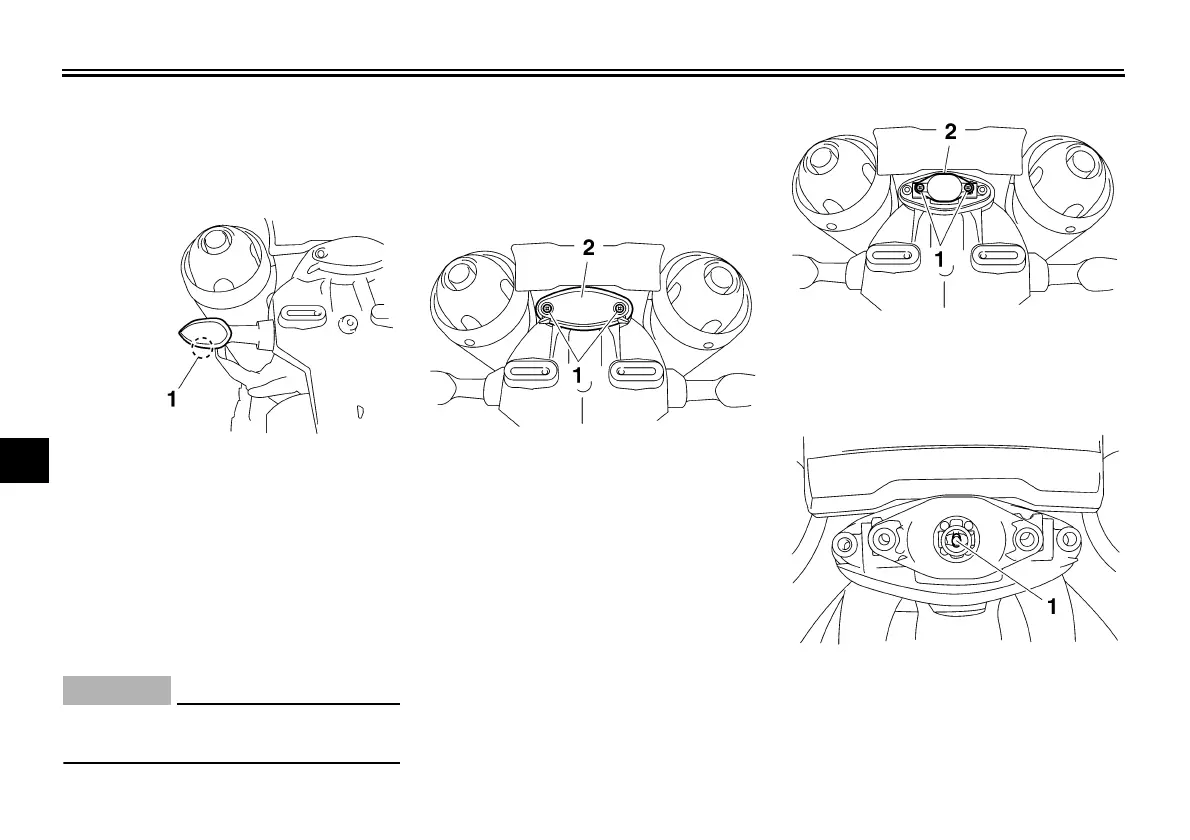

Replacing a turn signal light
bulb
1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
CAUTION:
ECA11190
Do not overtighten the screw, other-
wise the lens may break.
EAU36810
Replacing the license plate
light bulb
1. Remove the license plate light cov-
er by removing the screws.
2. Remove the license plate light lens
by removing the screws.
3. Remove the defective bulb by pull-
ing it out from the socket.
4. Insert a new bulb into the socket.
5. Install the license plate light lens
by installing the screws.
1. Screw 1. Screw
2. License plate light cover
1. Screw
2. License plate light lens
1. License plate light bulb
