Instrument and control functions
5-7
5
EAU92300
Display
The following items can be found on
the display:
This model uses a thin-film-transistor
liquid-crystal display (TFT LCD) for
good contrast and readability in vari-
ous lighting conditions. However, due
to the nature of this technology, it is
normal for a small number of pixels to
be inactive.
EWA18210
Stop the vehicle before making any
setting changes. Changing settings
while riding can distract the opera-
tor and increase the risk of an acci-
dent.
Speedometer
The speedometer shows the vehicle’s
traveling speed.
The display can be switched between
kilometers and miles. See “Unit” on
page 5-15.

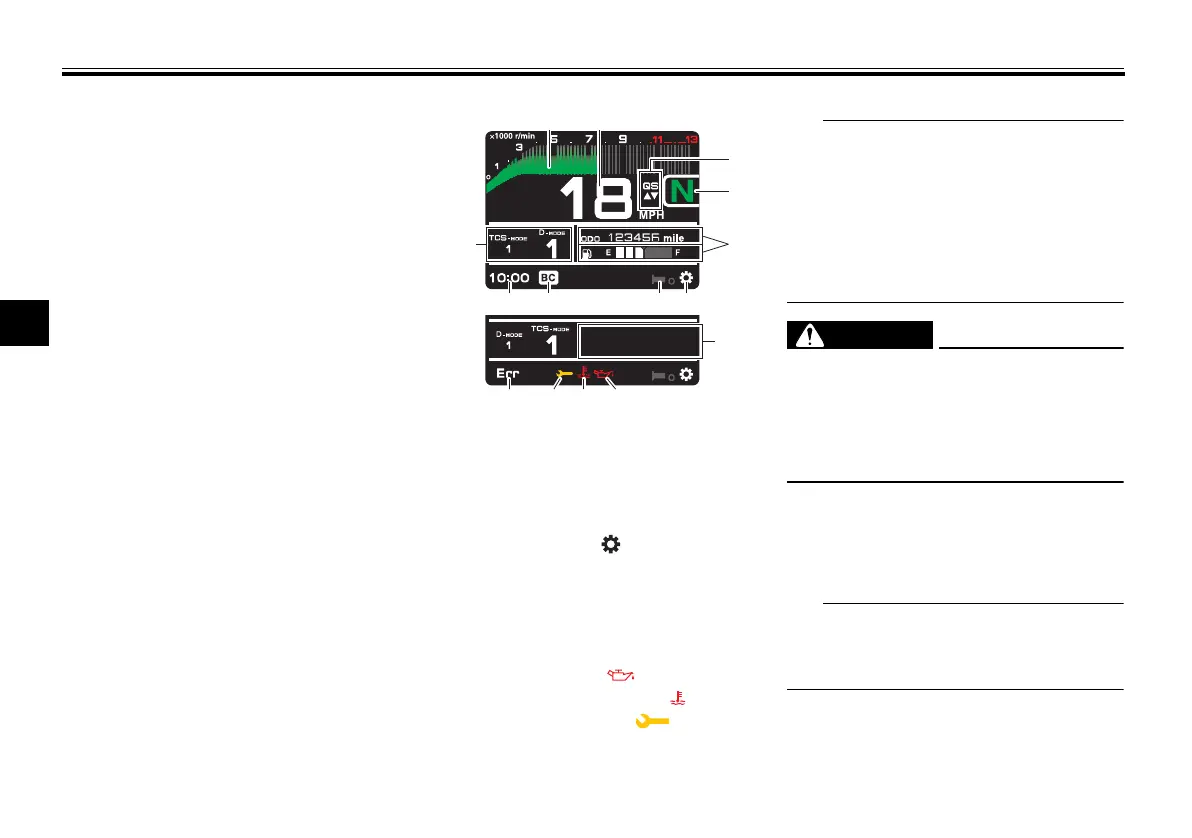

1. Tachometer
2. Speedometer
3. Quick shift indicator “QS”
4. Transmission gear display
5. Vehicle information displays
6. Settings MENU icon “ ”
7. Grip warmer indicator (option)
8. Brake control icon “BC”
9. Clock
10.MODE display
11.Lap timer
12.Oil pressure warning “ ”
13.Coolant temperature warning “ ”
14.Auxiliary system warning “ ”
15.Error mode warning “Err” (replaces clock
when activated)
LAP 02
LATEST
00:12.3 4
00:01.23
