Periodic maintenance and adjustment
8-30
8
EAU91572

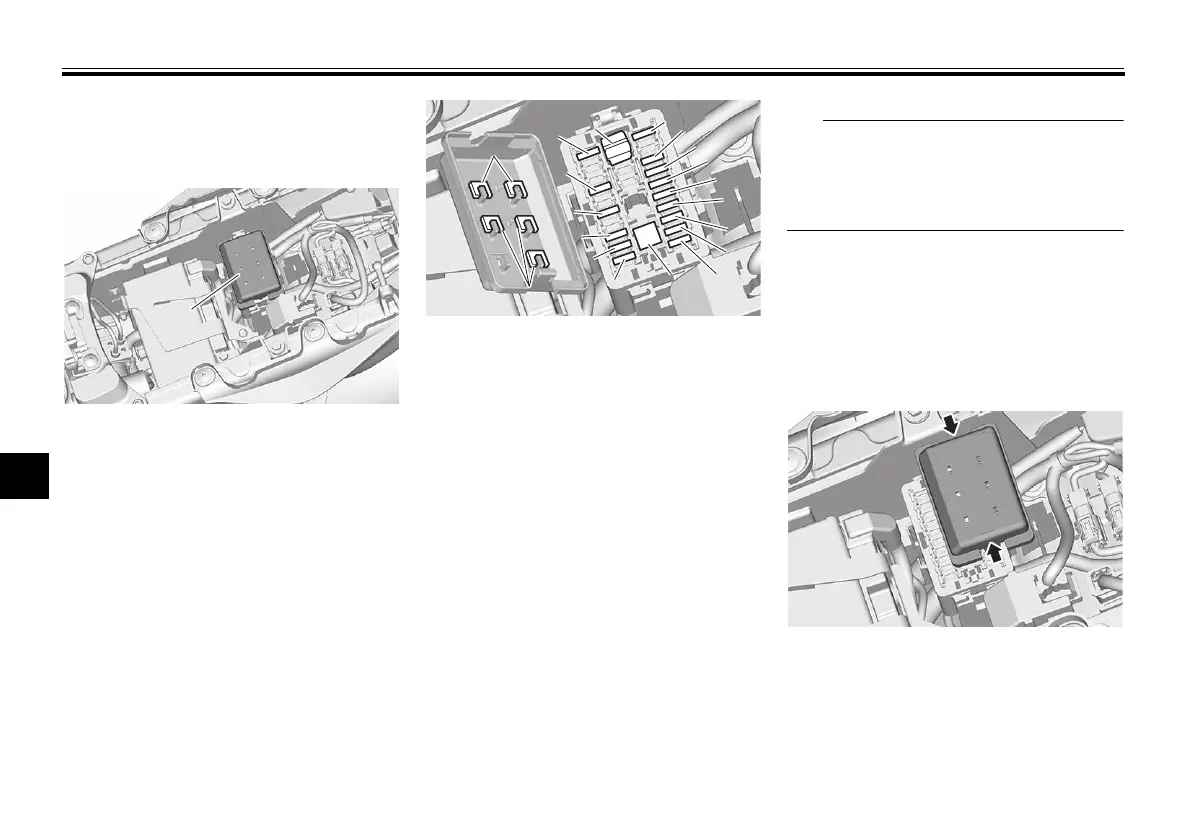

Replacing the fuses
The fuse box is located under the seat.
(See page 5-23.)
If a fuse is blown, replace it as follows.
There is a spare fuse on the back
side of the fuse box cover.
Use a fuse puller to remove the
fuse.
1. Turn the main switch off and turn
off the electrical circuit in ques-
tion.
2. Remove the fuse box cover by
pressing inwards at the two points
indicated on the cover and pulling
upwards.
3. Remove the blown fuse using the
fuse puller.
1. Fuse box
1
1
1. Brake light fuse
2. Ignition fuse 2
3. Signaling system fuse
4. Ignition fuse
5. Headlight fuse
6. ABS ECU fuse
7. Fuel injection system fuse
8. Electronic throttle valve fuse
9. Backup fuse 2
10.Main fuse
11.ABS motor fuse
12.ABS solenoid fuse
13.Radiator fan motor fuse
14.Terminal fuse 1
15.Backup fuse
16.Cruise control fuse
17.Fuse puller
18.Spare fuse
22
3
4
5
6
7
8
9
2
1
1
3
4
5
6
7
8
9
1010
1111
1212
1313
1414
1515
1818
1818
10
11
12
13
14
15
18
18
161616
171717
