Instrument and control functions
5-23
5
EAU57992

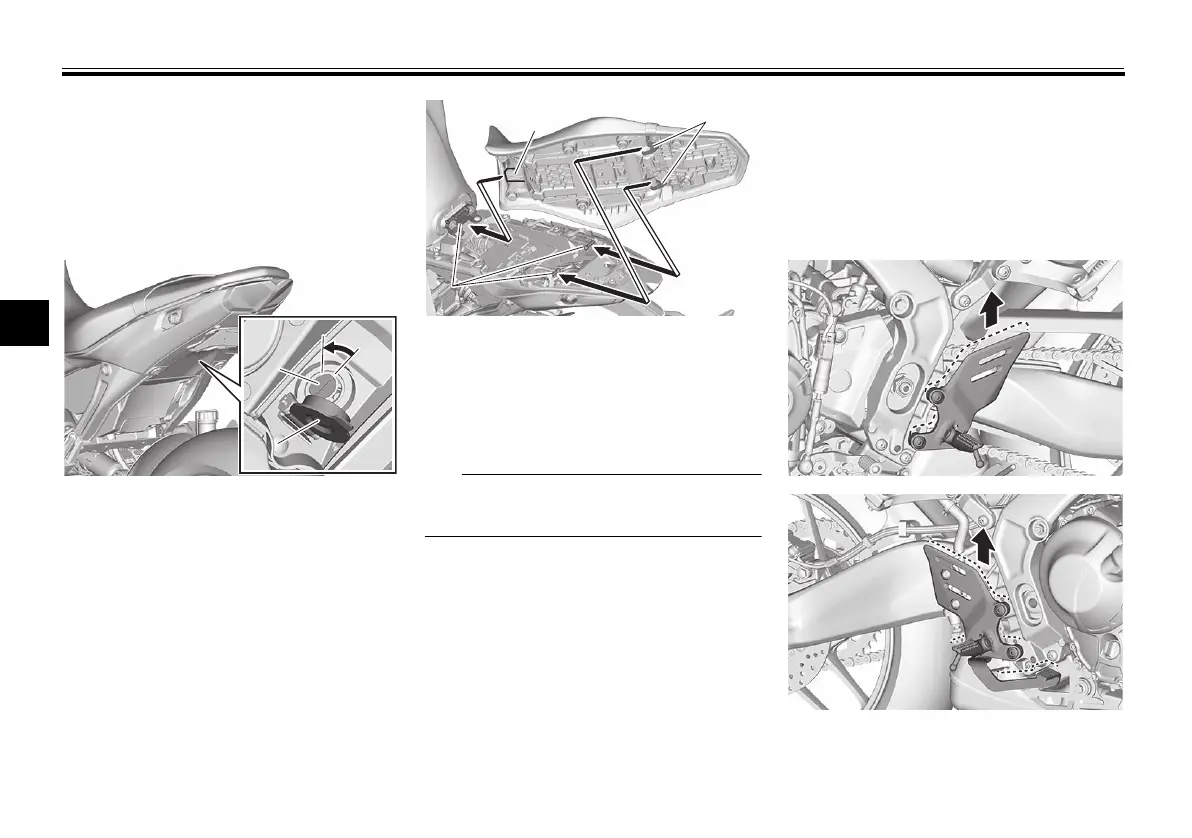

Seat
To remove the seat
1. Open the seat lock cover, insert
the key into the seat lock, and then
turn the key counterclockwise.
2. While holding the key in that posi-
tion, slide the seat backward and
then lift the rear of the seat up, and
then pull the seat off.
To install the seat
1. Insert the projections into the seat
holders as shown.
2. Push the rear of the seat down to
lock it in place.
3. Remove the key.
Make sure that the seat is properly se-
cured before riding.
EAU91560
Rider footrest position
The rider footrests can be adjusted to
one of two positions. From the factory,
the footrests are in the low position.
Have a Yamaha dealer adjust the posi-
tions of the rider footrests.
1. Seat lock cover
2. Seat lock
3. Unlock.
3
3
1
2
1. Projection
2. Seat holder
UBAM10E0.book Page 23 Wednesday, November 4, 2020 11:05 AM
