Instrument and control functions
5-26
5
TIP
When turning the damping force ad-
juster in direction (b), it may turn be-
yond the stated specifications,
however such adjustments are ineffec-
tive and may damage the suspension.
To adjust the compression damping
force (for slow compression damping)
Turn the adjusting bolt in direction (a)
to increase the compression damping
force. Turn the adjusting bolt in direc-
tion (b) to decrease the compression
damping force. To set the compres-
sion damping force, turn the adjuster in
direction (a) until it stops, and then
count the clicks in direction (b).
TIP
 When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
 When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica-
tions, however such adjustments
are ineffective and may damage
the suspension.

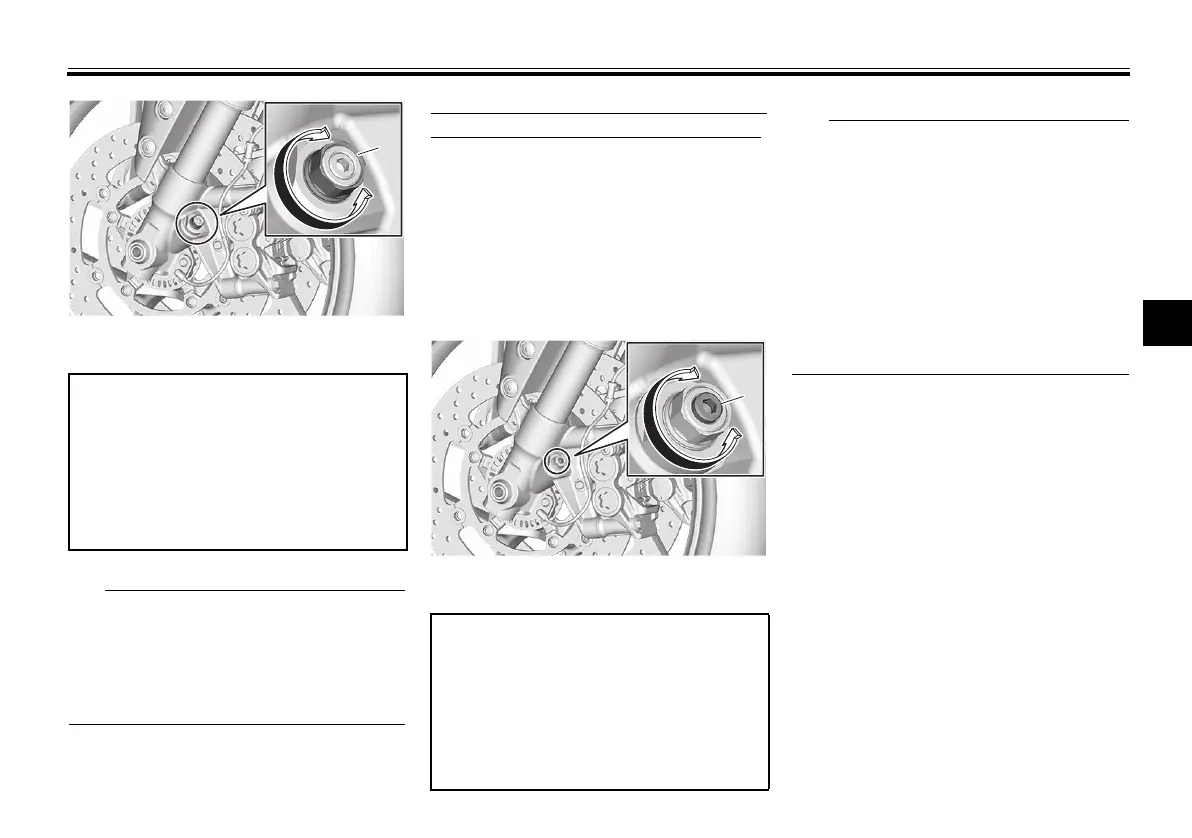

1. Compression damping force adjusting bolt
(for fast compression damping)
Compression damping setting (for
fast compression damping):
Minimum (soft):
5 1/2 turn(s) in direction (b)
Standard:
3 1/4 turn(s) in direction (b)
Maximum (hard):
0 turn(s) in direction (b)
(b)(b)
(a)(a)
1
(b)
(a)
1
1. Compression damping force adjusting bolt
(for slow compression damping)
Compression damping setting (for
slow compression damping):
Minimum (soft):
18 click(s) in direction (b)
Standard:
12 click(s) in direction (b)
Maximum (hard):
1 click(s) in direction (b)
(b)(b)
(a)(a)
(b)
(a)
11
