Yamaha NMAX 2016 - Seat; Storage Compartments

Instrument and control functions
3-16
3
EAU60621

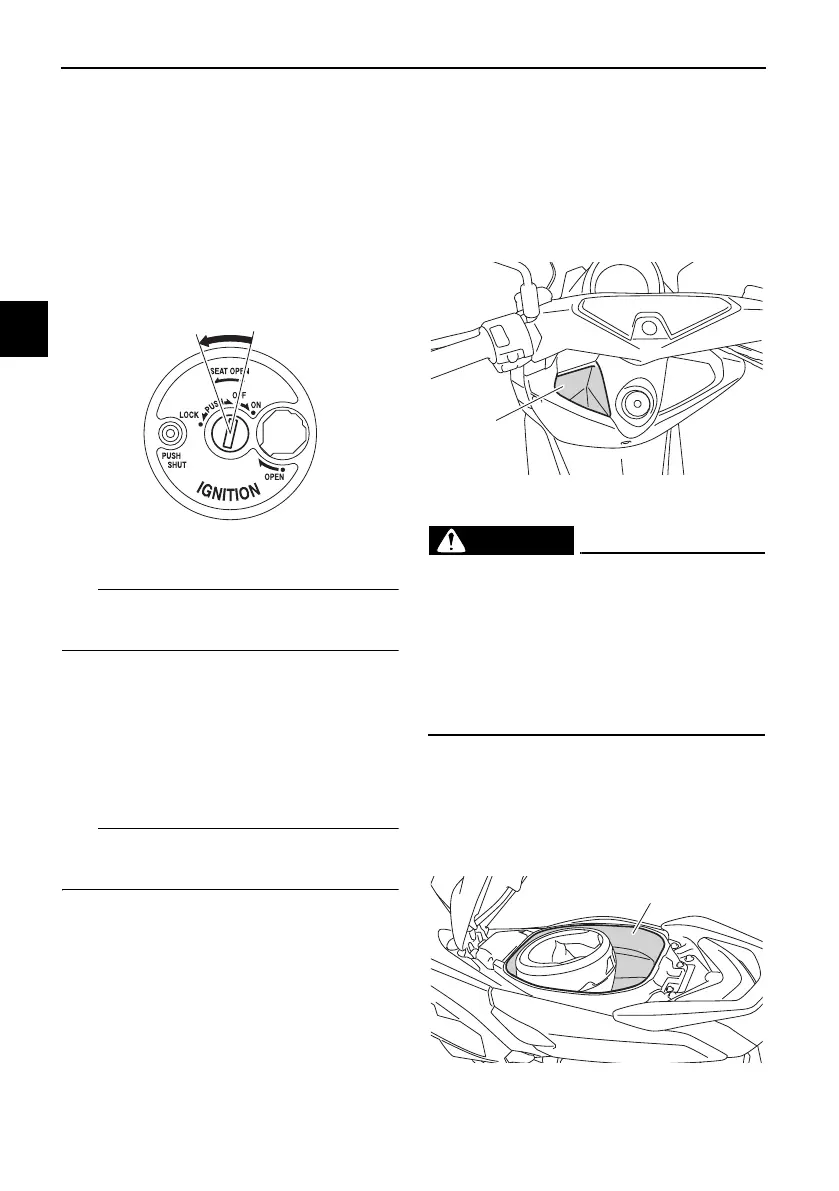

Seat
To open the seat
1. Place the vehicle on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise
to “SEAT OPEN”.
TIP
Do not push inward when turning the
key.
3. Fold the seat up.
To close the seat
1. Fold the seat down, and then push
it down to lock it in place.
2. Remove the key.
TIP
Make sure that the seat is properly se-
cured before riding.
EAU57081
Storage compartments
Front storage compartment
The front storage compartment is lo-
cated at the front of the vehicle. Use
this compartment for small items.
WARNING
EWA17250
 Do not exceed the load limit of
1.5 kg (3.3 lb) for the front stor-
age compartment.
 Do not place anything in the
front storage compartment that
will interfere with your operating
the vehicle.
Rear storage compartment
The rear storage compartment is locat-
ed under the seat. Use this compart-
ment for large items. (See page 3-16.)
1. Open.
1
1. Front storage compartment
1. Rear storage compartment
1
1
