Periodic maintenance and adjustment
6-7
6
EAU18773
Removing and installing pan-
els

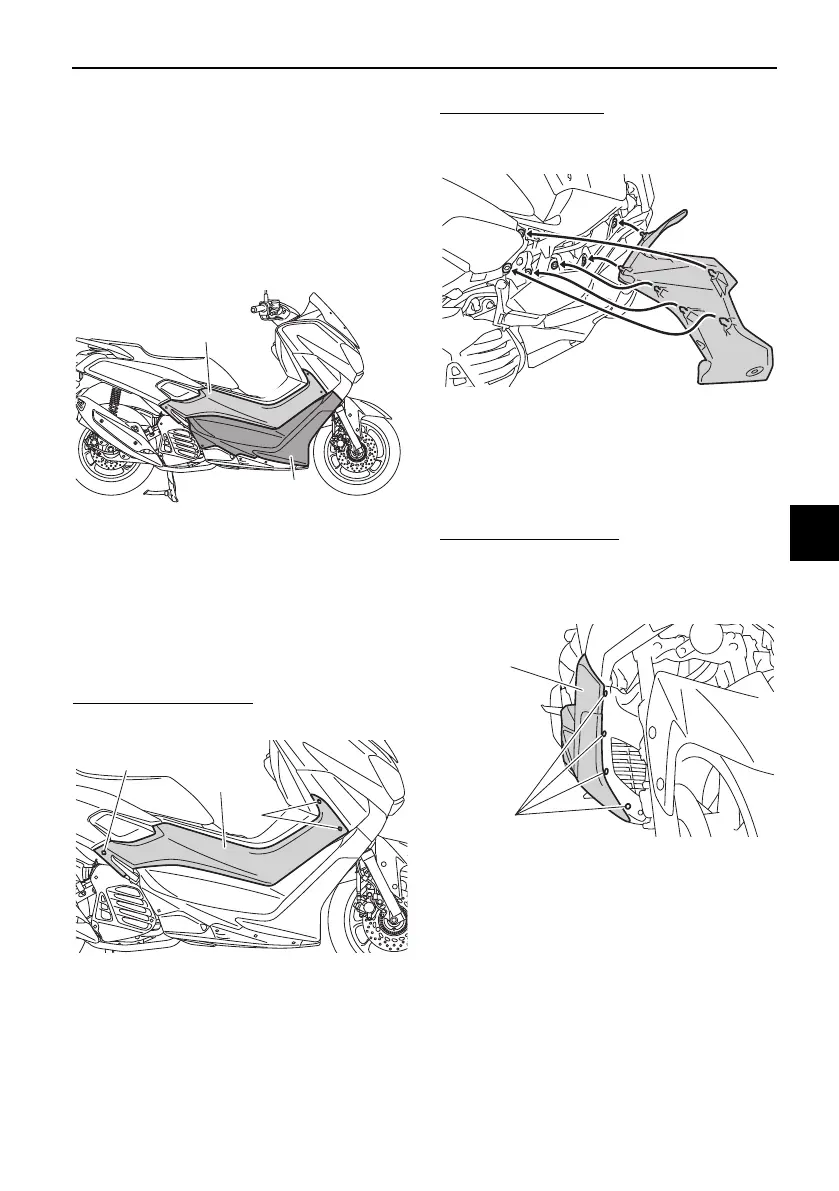

The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU67270
Panel A
To remove the panel
1. Remove the bolts.
2. Extend the right passenger foot-
rest, and then pull the panel out-
ward.
To install the panel
1. Place the panel in the original po-
sition, and then install the bolts.
2. Retract the right passenger foot-
rest to its original position.
Panel B
To remove the panel
1. Remove panel A.
2. Remove the quick fasteners and
the bolt.
1. Panel A
2. Panel B
1. Panel A
2. Bolt
1
2
1
2
2
1. Panel B
2. Quick fastener
2
1
