Periodic maintenance and adjustment
6-37
6
10. Place the taillight unit in the origi-
nal position, and then install the
screws and quick fasteners.
11. Install the taillight cover by install-
ing the screws.
12. Install the grab bar by installing the
bolts, and then tightening them to
the specified torque.
13. Close the seat.
EAU43054

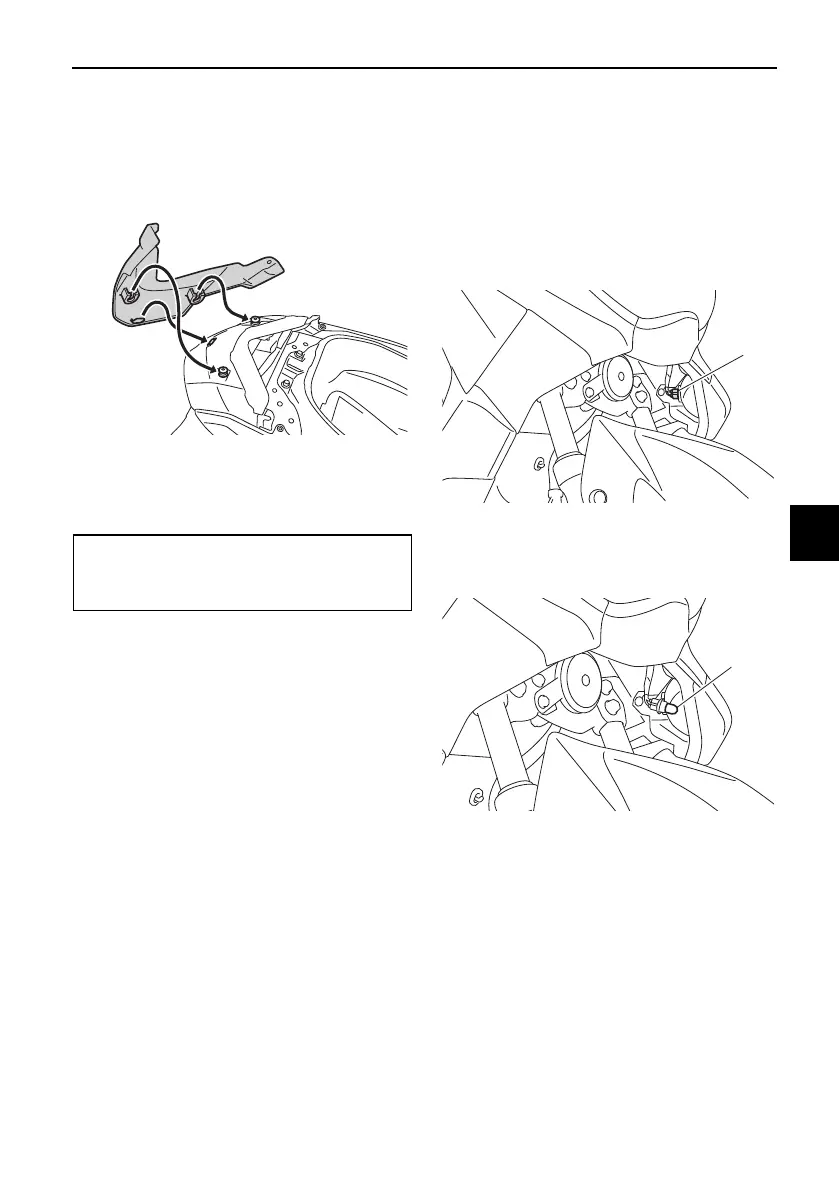

Replacing a front turn signal
light bulb
1. Place the vehicle on the center-
stand.
2. Remove the turn signal light bulb
socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
Tightening torque:
Grab bar bolt:
17 N·m (1.7 kgf·m, 12 lb·ft)
1. Turn signal light bulb socket
1. Turn signal light bulb
UBV3E0E0.book Page 37 Monday, September 26, 2016 3:42 PM
