Yamaha NMAX 2016 - Page 76

Periodic maintenance and adjustment
6-36
6

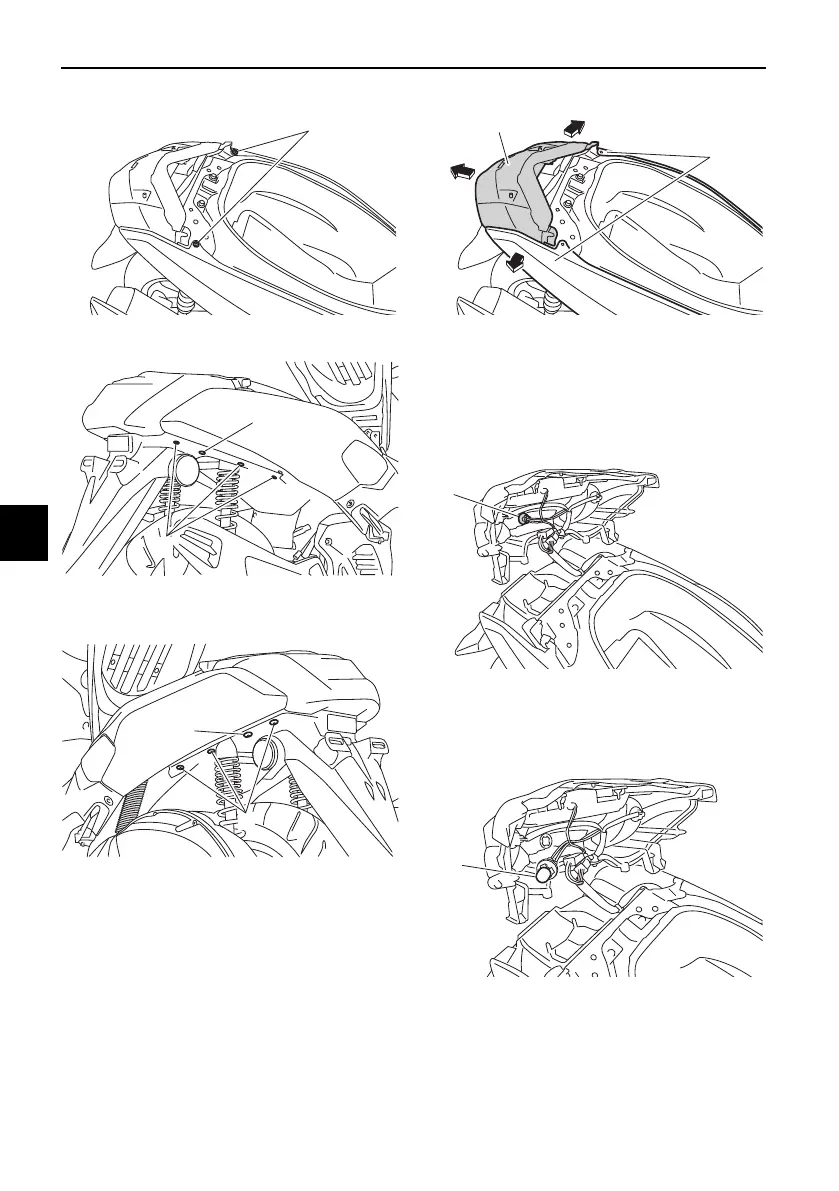

5. Pull the left and right side covers
slightly outward and pull the tail-
light unit rearward.
6. Remove the taillight bulb socket
(together with the bulb) by turning
it counterclockwise.
7. Remove the burnt-out bulb by
pulling it out.
8. Insert a new bulb into the socket.
9. Install the socket (together with
the bulb) by turning it clockwise.
1. Quick fastener
1. Screw
2. Quick fastener
1. Screw
2. Quick fastener
1
2
1
1
2
1. Taillight unit
2. Side cover
1. Taillight bulb socket
1. Taillight bulb
1
2
1
1
UBV3E0E0.book Page 36 Monday, September 26, 2016 3:42 PM
