Periodic maintenance and adjustment
6-34
6
EAU67290
Replacing an auxiliary light
bulb
This model is equipped with two auxil-
iary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove the windshield by remov-
ing the screws.
2. Remove the headlight cover by re-
moving the bolts.
3. Remove the auxiliary light bulb
socket (together with the bulb) by
turning the socket counterclock-
wise.
4. Remove the burnt-out bulb by
pulling it out.
5. Insert a new bulb into the socket.
6. Install the socket (together with
the bulb) by turning it clockwise.
7. Install the headlight cover by in-
stalling the bolts.
8. Install the windshield by installing
the screws.

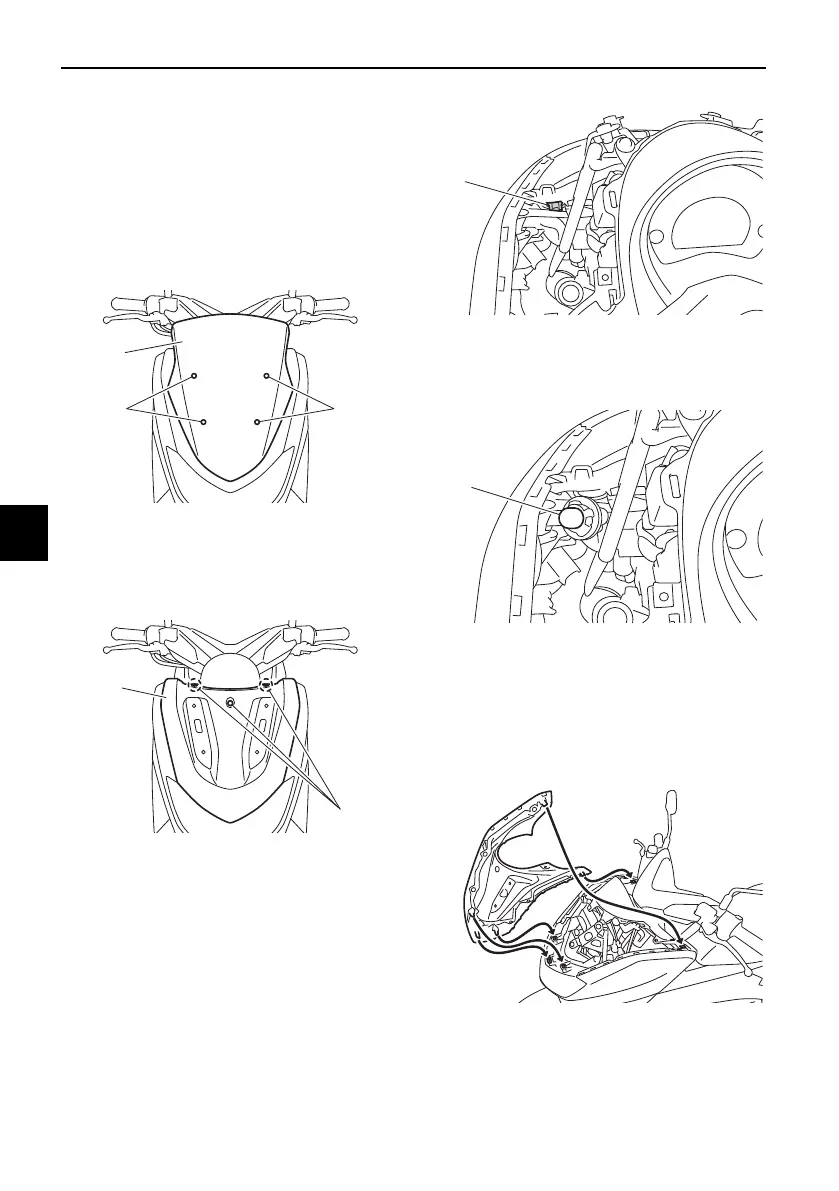

1. Windshield
2. Screw
1. Headlight cover
2. Bolt
1. Auxiliary light bulb socket
1. Auxiliary light bulb
