Periodic maintenance and adjustment
6-19
6

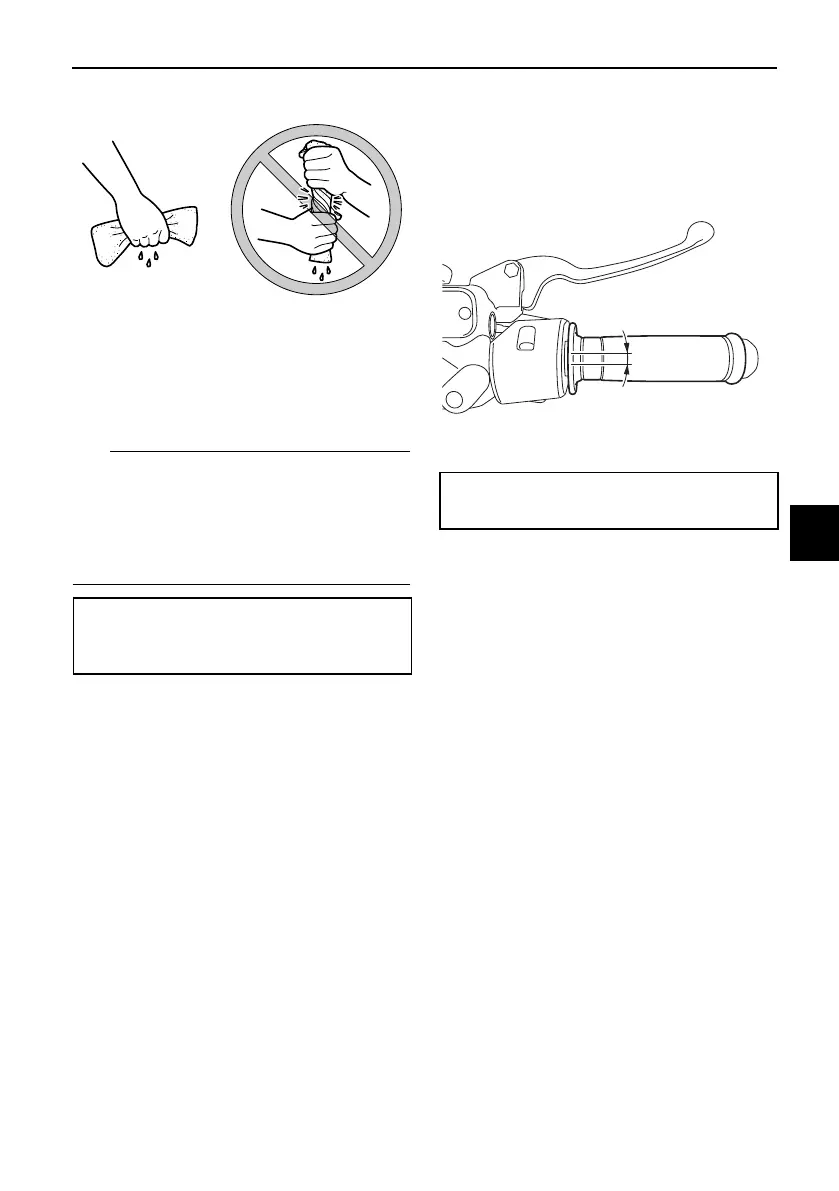

4. Apply oil of the recommended
type to the entire surface of the
sponge material, and then
squeeze the excess oil out.
The air filter element should be
wet but not dripping.
Check the air filter element for ex-
cessive dirt or damage and re-
place it if necessary.
5. Insert the element into the V-belt
case.
6. Install the air filter element cover
by installing the screws.
EAU21386
Checking the throttle grip free
play
Measure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, have a Yamaha
dealer adjust it.
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
1. Throttle grip free play
Throttle grip free play:
3.0–5.0 mm (0.12–0.20 in)
UBV3E0E0.book Page 19 Monday, September 26, 2016 3:42 PM
