Yamaha NMAX 2016 - Replacing a Rear Turn Signal Light Bulb

Periodic maintenance and adjustment
6-38
6
EAU67320
Replacing a rear turn signal
light bulb
1. Open the seat. (See page 3-16.)
2. Remove the grab bar by removing
the bolts.
3. Remove the taillight cover by re-
moving the screws.
4. Remove the turn signal light bulb
socket (together with the bulb) by
turning it counterclockwise.
5. Remove the burnt-out bulb by
pulling it out.
6. Insert a new bulb into the socket.
7. Install the socket (together with
the bulb) by turning it clockwise.
8. Install the taillight cover by install-
ing the screws.
9. Install the grab bar by installing the
bolts, and then tightening them to
the specified torque.

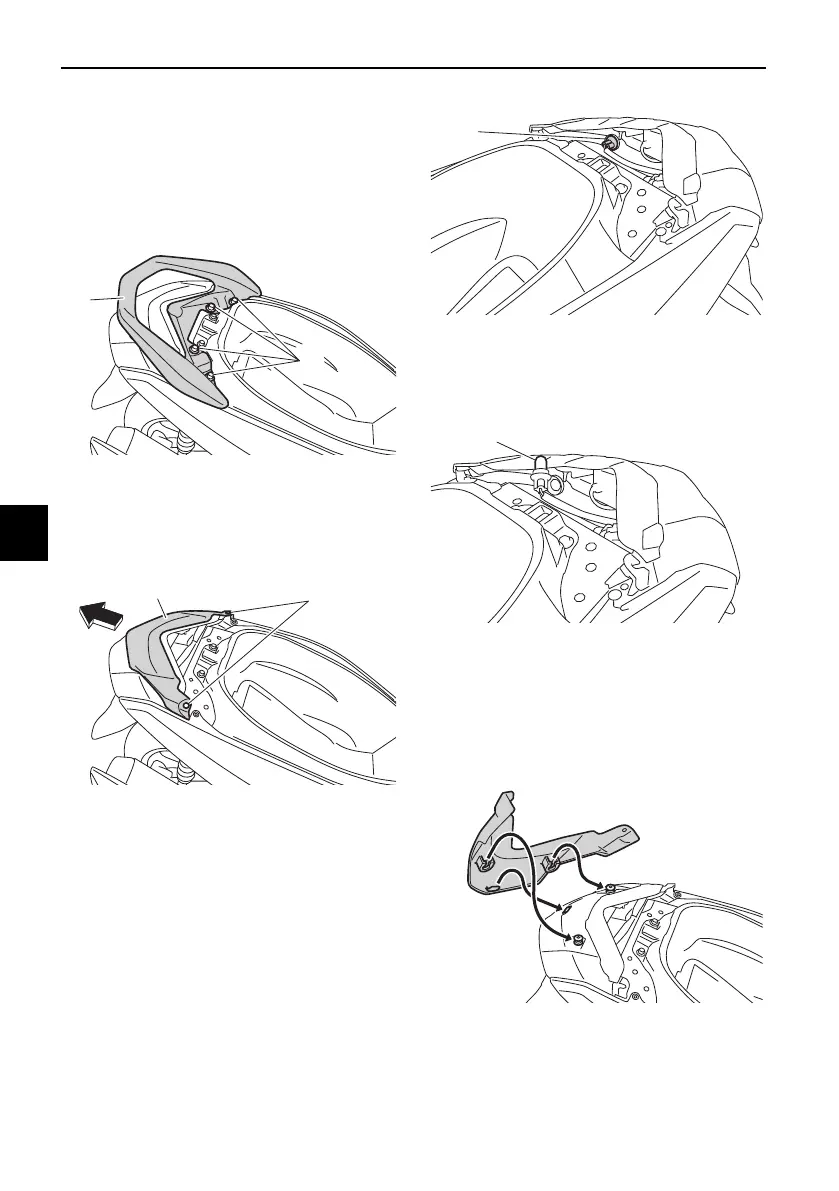

1. Grab bar
2. Bolt
1. Taillight cover
2. Screw
1
2
1
2
1. Turn signal light bulb socket
1. Turn signal light bulb
1
1
